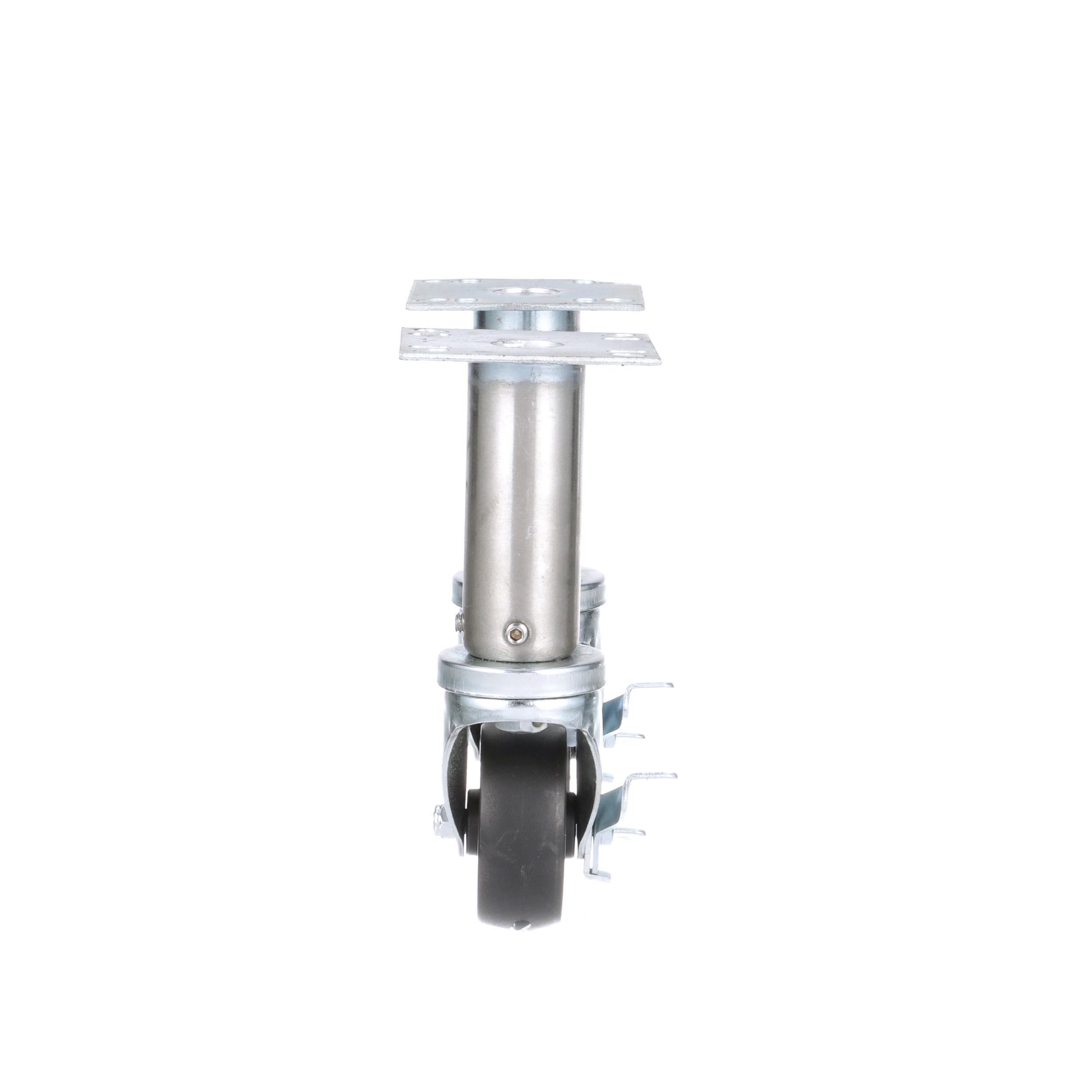

    Caster Kit, 8-1/2" OA Medium Duty 3-1/2" Square Plate Adjustable Caster Leg With 3" Black Polyolefin Wheel, 2 Brake And 2 Non-Brake In Retail Box

    • Caster Kit, 8-1/2" OA Medium Duty 3-1/2" Square Plate Adjustable Caster Leg With 3" Black Polyolefin Wheel, 2 Brake And 2 Non-Brake In Retail Box
    • Caster is designed with a special retaining feature that keeps the leg attached to the caster during adjustment and movement to avoid dangerous content spillage
    • Caster 4-pack in retail packaging
    • All casters furnished with side brake
    • 1-5/8" OD satin stainless steel construction
    • 1-1/4" (32mm) tread width
    • 3" (76mm) OD black solid rubber wheel
    • 3-5/16" (85mm) swivel radius
    • Load capacity 300 lbs. (135kg) per wheel
    • 8-1/2" (215mm) minimum overall load height
    • 2" (51mm) height adjustment
    • Furnished with two locking set screws to secure height adjustment
    • 3-1/2" x 3-1/2" (89mm x 89mm) square, 11-gauge, painted steel mounting plate with round mounting holes space on 2-5/8" x 2-5/8" centers
    • Mounting holes accept 1/4" diameter bolts/screws
    • Operating temperature range of -20°F to 180°F (-29°C to 82°C)
    Model No: CSTPK-3PAL
    Item No.: 1010878

    Related Resources


    SPC-CSTPK-3PAL.pdf
    Availability: In stock
    $186.19
    i h
    Products specifications
    CASTER DUTY MEDIUM
    MOUNTING TYPE PLATE
    THREAD / PLATE / STEM SIZE 003.500 X 003.500
    WHEEL DIAMETER 3 INCHES
    WHEEL MATERIAL BLACK POLYOLEFIN
    BRAKE TYPE SIDE
    BEARING TYPE NONE
    MEASUREMENT TYPE IMPERIAL
