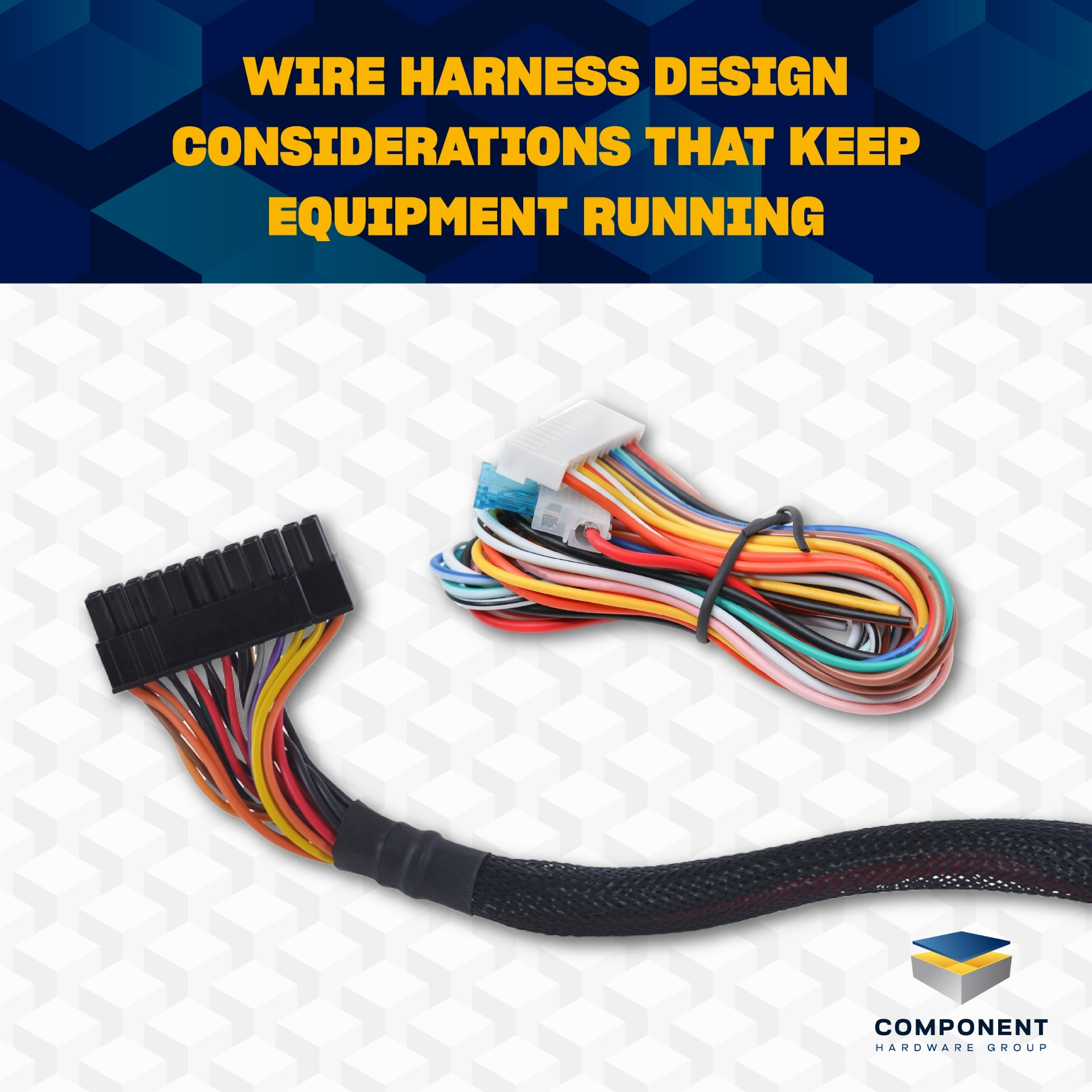

Wire Harness Design Considerations That Keep Equipment Running

When equipment fails on a production floor or in a busy commercial kitchen, the wiring is rarely the first thing anyone suspects. Operators check the motor, the controls, and the heating element. They open panels, run diagnostics, and swap parts. Hours pass before someone traces the issue back to a connector that loosened under vibration or a wire that chafed against a sharp edge for the last six months, until the insulation finally gave out.

By the time the wire harness is identified as the failure point, the equipment has been down long enough to disrupt service, miss a shipment, or push a project past its deadline. And the part that caused all of this often costs less than fifty dollars to replace.

Why Wire Harness Design Decisions Outlive the Build

Wire harnesses look simple from the outside. A bundle of wires, some connectors, maybe some loom or shrink tubing. But the design decisions that go into a wire harness, the choices about gauge, insulation, routing, strain relief, and connector type, determine how that equipment performs years after the build is complete.

A wire harness designed for a benchtop prototype rarely survives in the field. Real environments include heat, oil, steam, vibration, repeated flexing, sharp edges, accidental tugs from cleaning crews, and the slow degradation caused by temperature cycling. None of that shows up in a CAD drawing. It shows up in warranty claims, service calls, and equipment that quietly underperforms until a customer complains.

Wire Harness Considerations That Actually Move the Needle

Not every wire harness decision matters equally. A few choices shape reliability more than the rest.

Wire gauge and conductor type

Undersized wire heats up under load, accelerates insulation breakdown, and shortens the life of the entire assembly. Overspecified wire wastes material and adds bulk, complicating routing. The right gauge depends on amperage, run length, and the temperature the wire will see in service, not just the nominal current draw.

Insulation rating

A wire harness running near a fryer, oven, or motor housing sees temperatures that ordinary PVC insulation cannot tolerate for long. High-temperature insulation costs more upfront but prevents the slow embrittlement that turns flexible wire into a cracked, brittle hazard within a few years.

Strain relief and routing

Connectors fail at the point where the wire enters them. Strain relief, whether through molded boots, anchored clamps, or careful routing, prevents repeated flexing from breaking conductors right behind the terminal. This is one of the most common failure modes in equipment that vibrates or moves during operation.

Connector selection

The wrong connector creates problems that compound over time. Connectors not rated for the environment corrode. Connectors with poor retention back out under vibration. Connectors that require special tooling slow down field service. Choosing the right connector for the application saves time at every point in the equipment's life.

What Goes Wrong When Wire Harnesses Are an Afterthought

On many builds, the wire harness is the last thing designed, and the first thing rushed. Engineers focus on the mechanical layout and the control logic, then someone pulls together a wire harness to connect everything at the end. That wire harness becomes the weak link in an otherwise well-designed system.

Common consequences include connectors mounted in places that are impossible to service, wires routed across hot surfaces or sharp edges, wire harnesses that require disassembly of unrelated components for replacement, and assemblies that take field technicians twice as long to troubleshoot because nothing is labeled.

These problems are not visible at the prototype stage. They emerge during production scale-up, in the field, and during service calls, long after the design is locked.

Designing Wire Harnesses with Service in Mind

A well-designed wire harness considers the equipment's full life cycle. That includes installation, regular maintenance, eventual repair, and end-of-life disassembly. Connectors should be accessible without removing major components. Wires should be labeled or color-coded so a technician can troubleshoot without a wiring diagram. Lengths should accommodate motion and adjustment without leaving excessive slack that catches on moving parts.

These design choices do not slow down the build. They speed it up because production technicians spend less time fighting awkward routing, and service technicians spend less time diagnosing problems in the field.

Where CHG Fits

CHG works directly with equipment manufacturers on custom wire harnesses and cable assemblies built for the specific environments in which the equipment operates. That includes high-temperature kitchens, refrigeration, industrial machinery, and other applications where standard catalog wire harnesses fall short.

The team handles design support, prototyping, and production volumes, with the goal of delivering an assembly that performs reliably for the life of the equipment, not just through the first month of service.

Every hour your equipment is down because of a wire harness failure is an hour you cannot get back.

If your current wire harnesses are causing field failures, slowing assembly, or making service calls take longer than they should, those problems will keep compounding until the design changes.

Talk to CHG's engineering team about a wire harness tailored to your application, environment, and how your equipment is actually used. The right wire harness is invisible. The wrong one is expensive.
