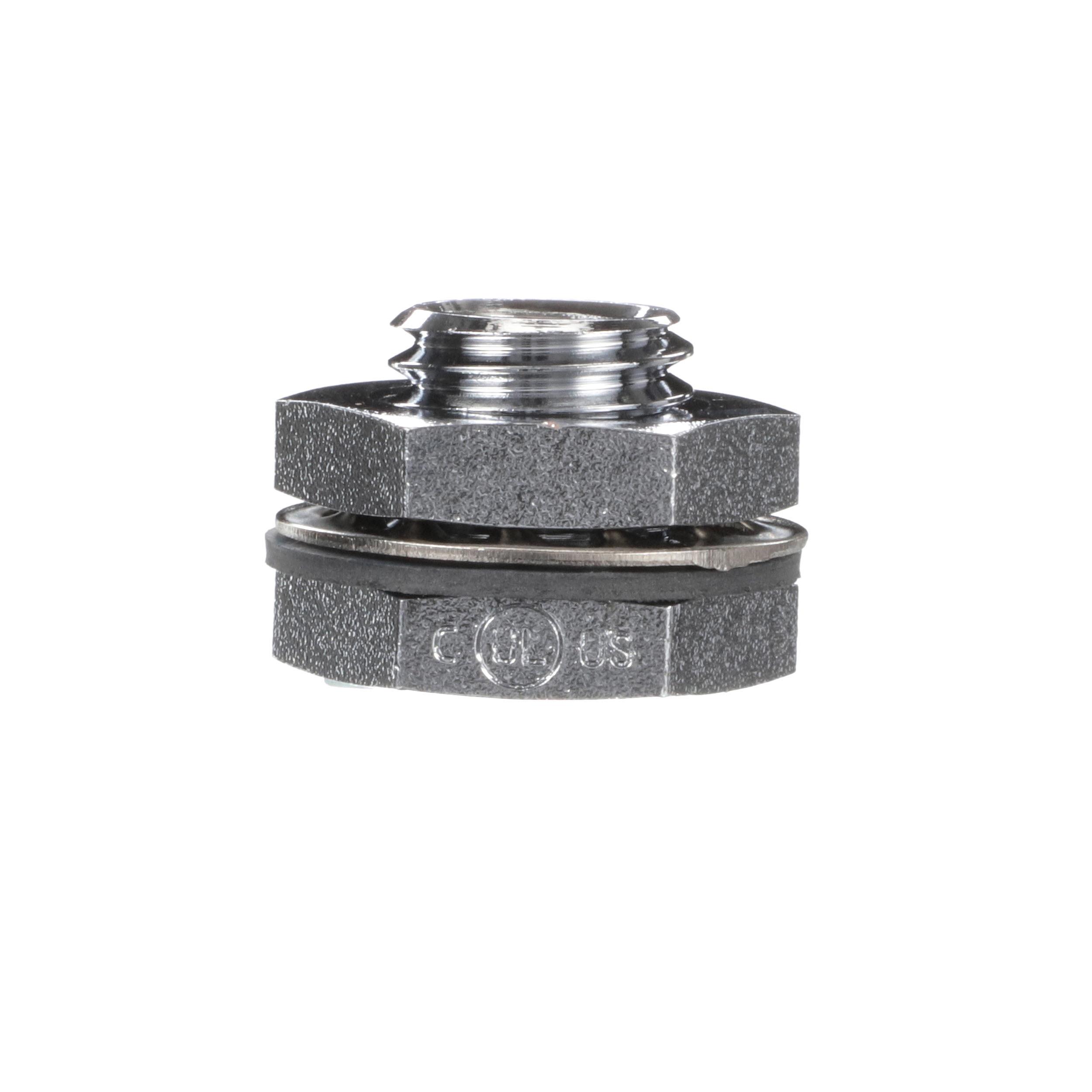

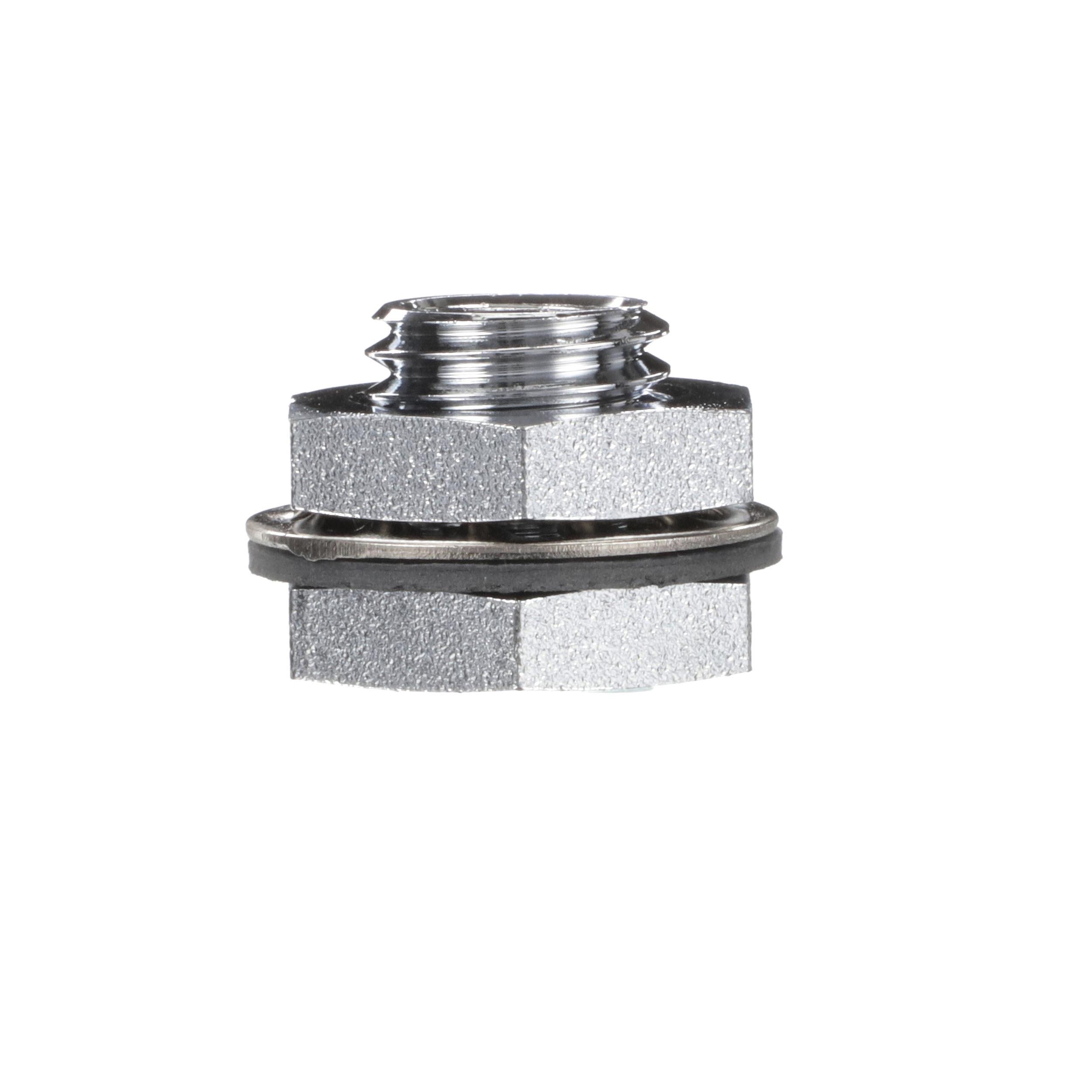

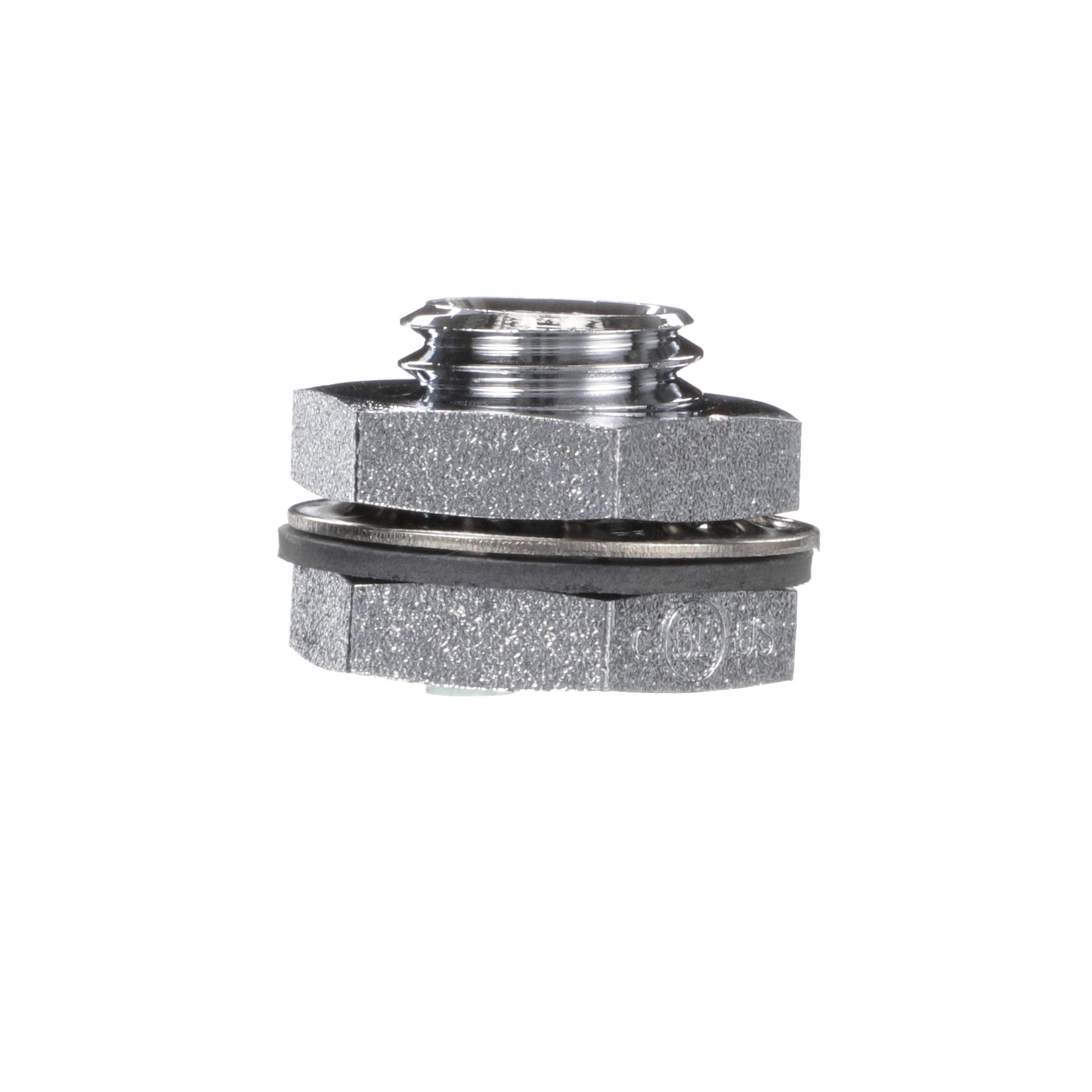

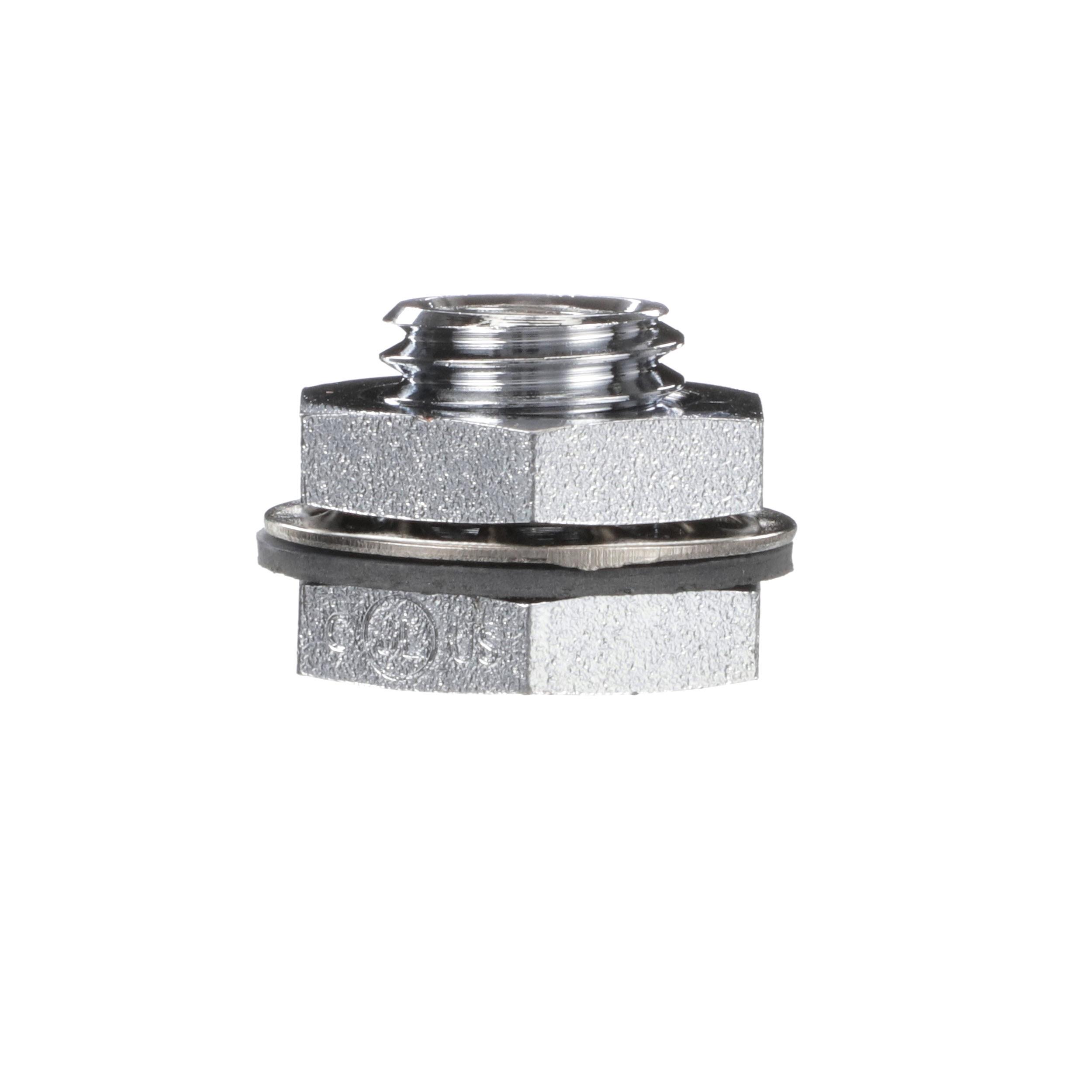

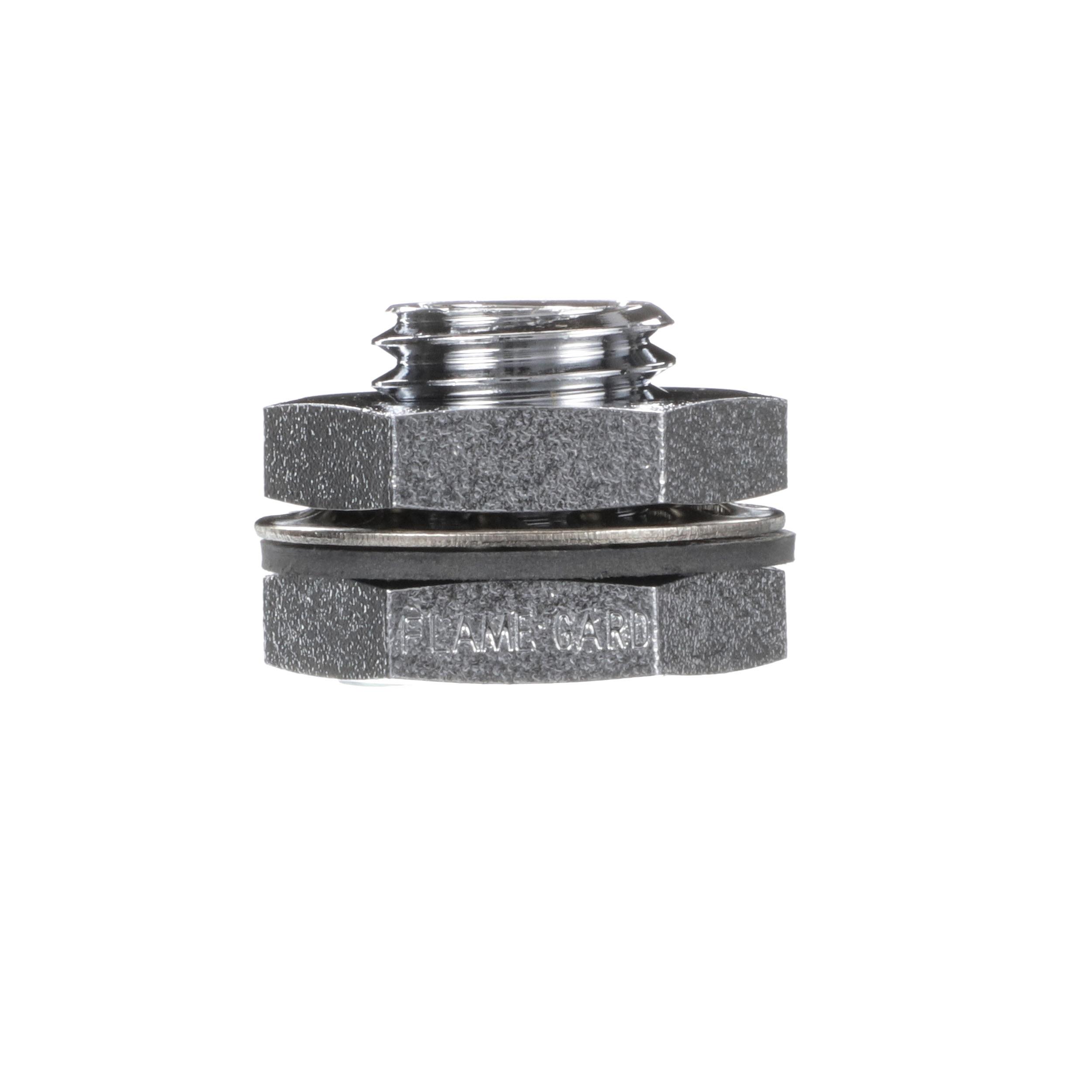

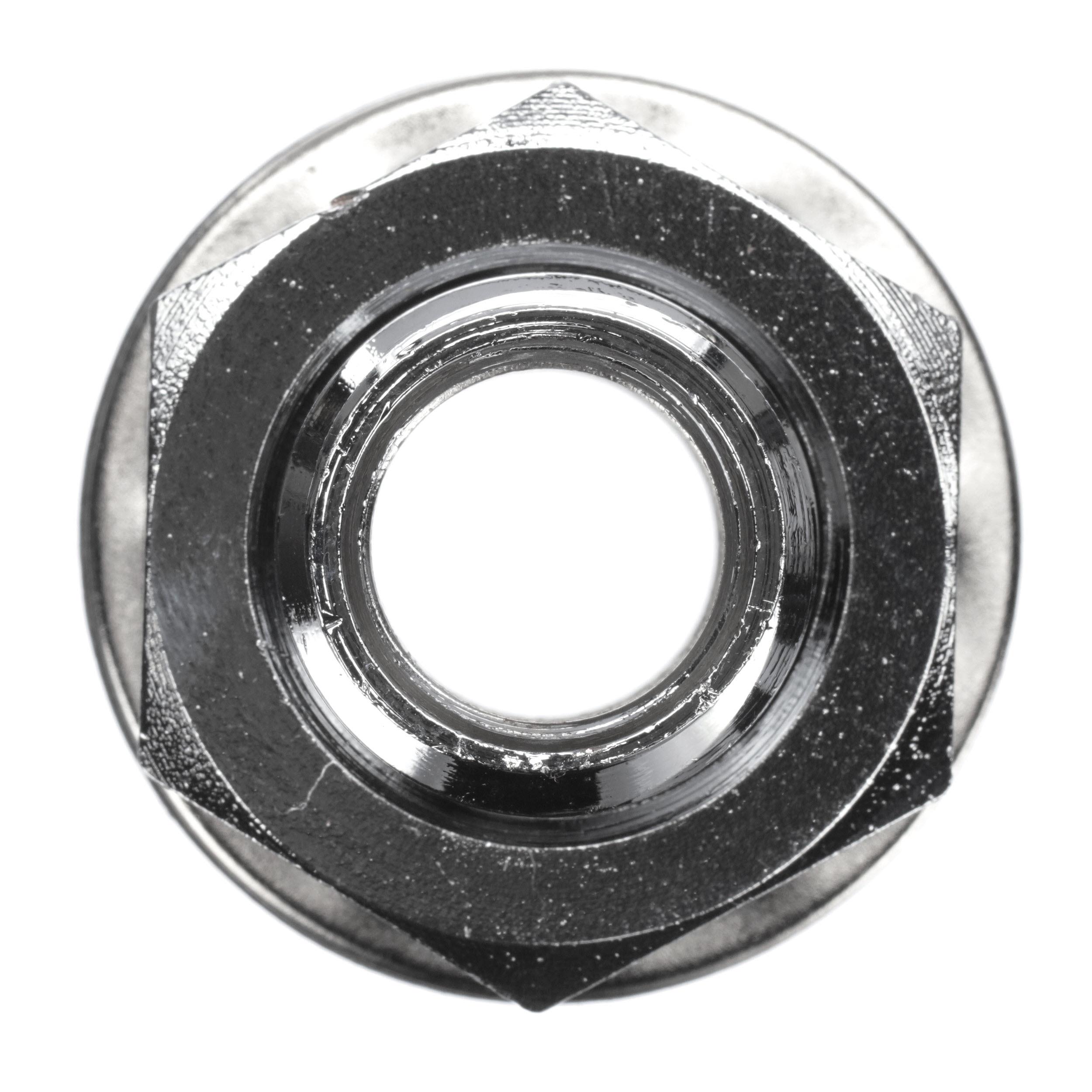

    1/4" NPSM Pipe Quick-Tite Hole Seal

    • 1/4" NPSM Pipe Quick-Tite Hole Seal Used as through-penetration fittings in cooking hood systems Provides structural support for the system piping, improving system integrity and reducing the need for additional pipe hangers All Quick-Tite® Fittings are pressure tested to 5000 psi Tested and Listed by Underwriters Laboratories under “Hood and Duct Accessories” (compatible with UL listed fire suppression systems) In conformance with the requirements of NFPA Standard No. 96 Manufactured of solid machined steel for superior strength and high temperature resistance Supplied with a chrome plated finish to maximize corrosion resistance and attractive appearance Fittings are provided with internal pipe threads to permit easy coupling of the pipes at the point of penetration
    Model No: F11-0014
    Item No.: 1003828

    $11.42
    i h
    Products specifications
    FINISH / COLOR CHROME PLATED
    PIPE SIZE 000.250 NPSM PIPE
    HOLE CUT OUT 000.812-000.875
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    FITTING TYPE THREADED HOLE SEAL
    ATTRIBUTES COMPLETE YES
