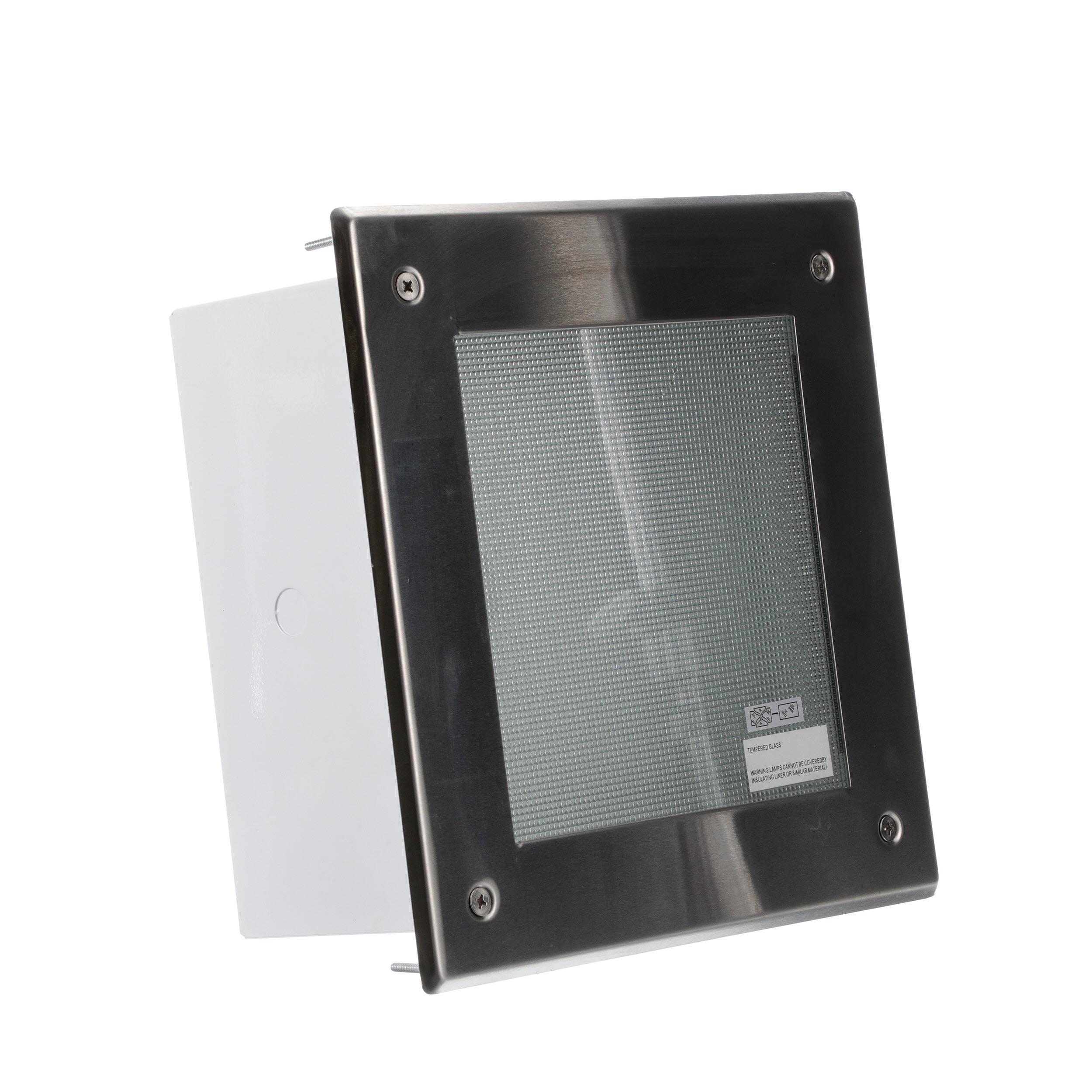

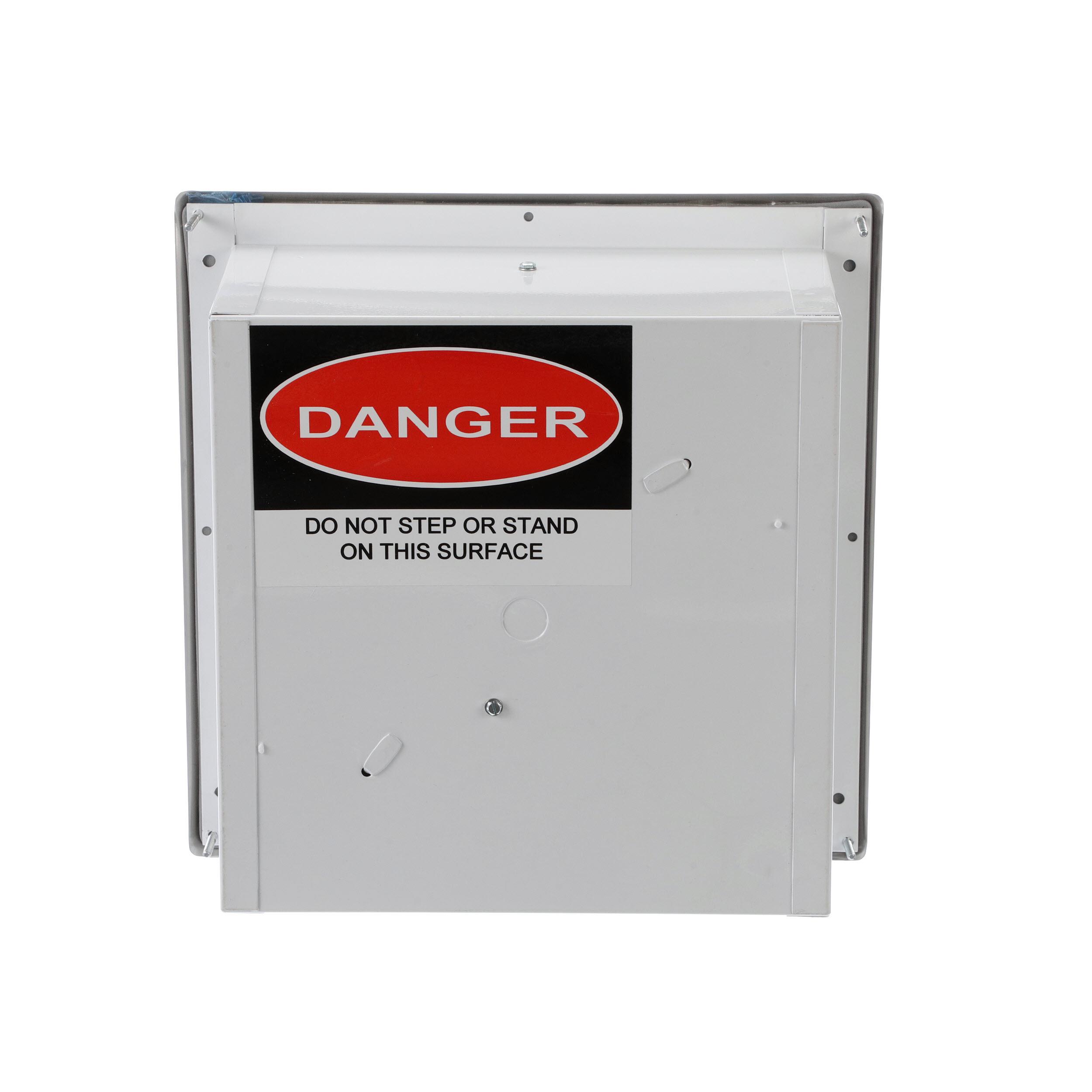

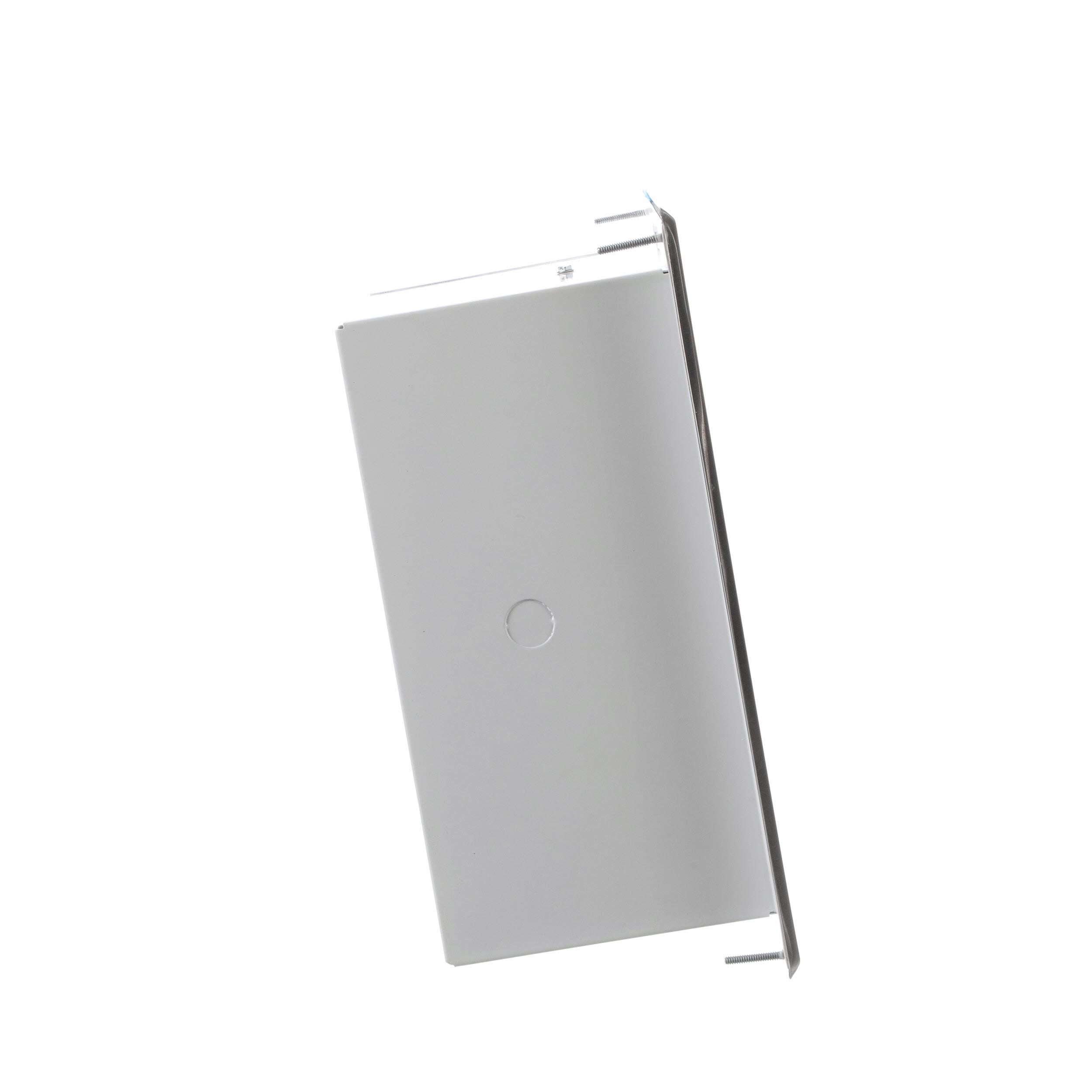

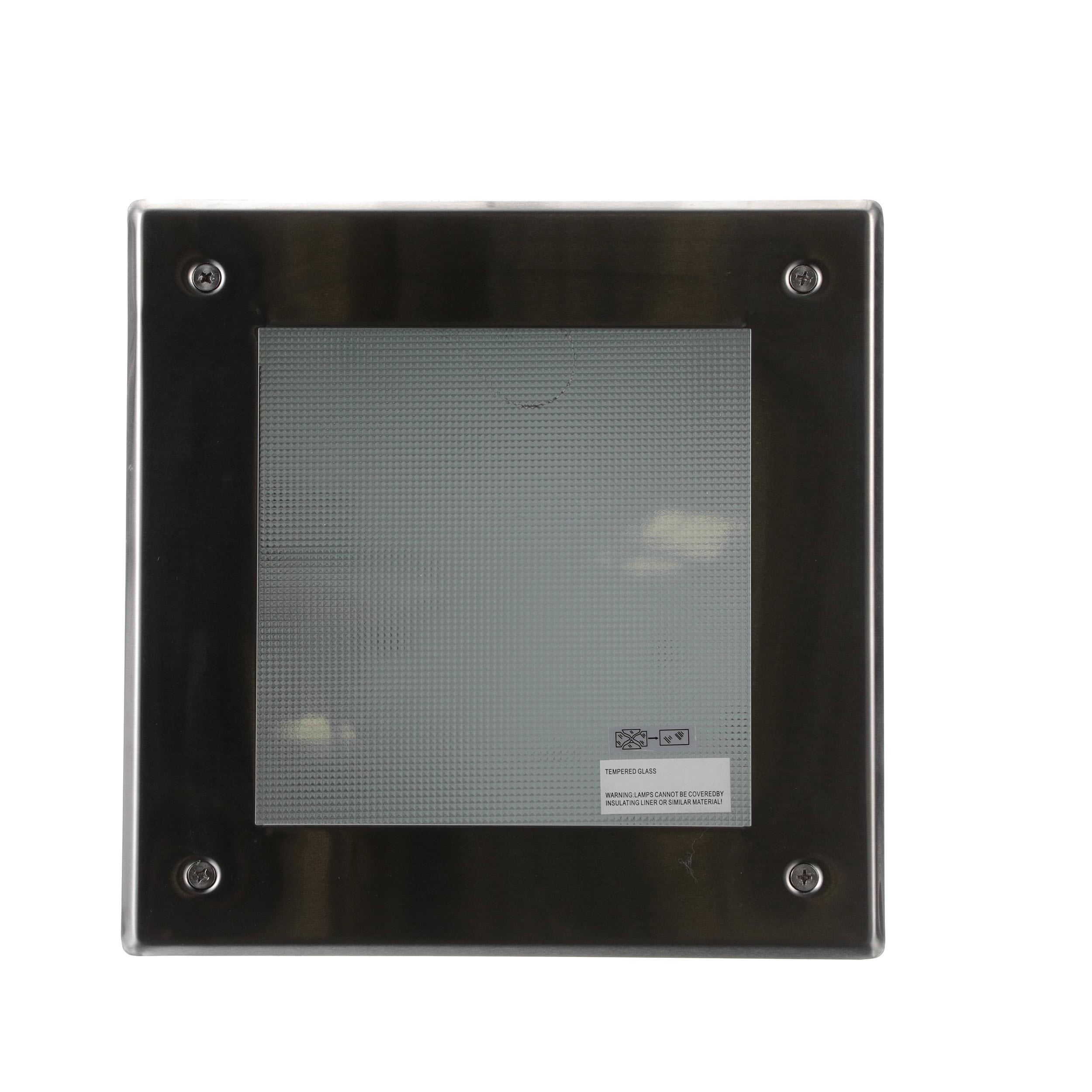

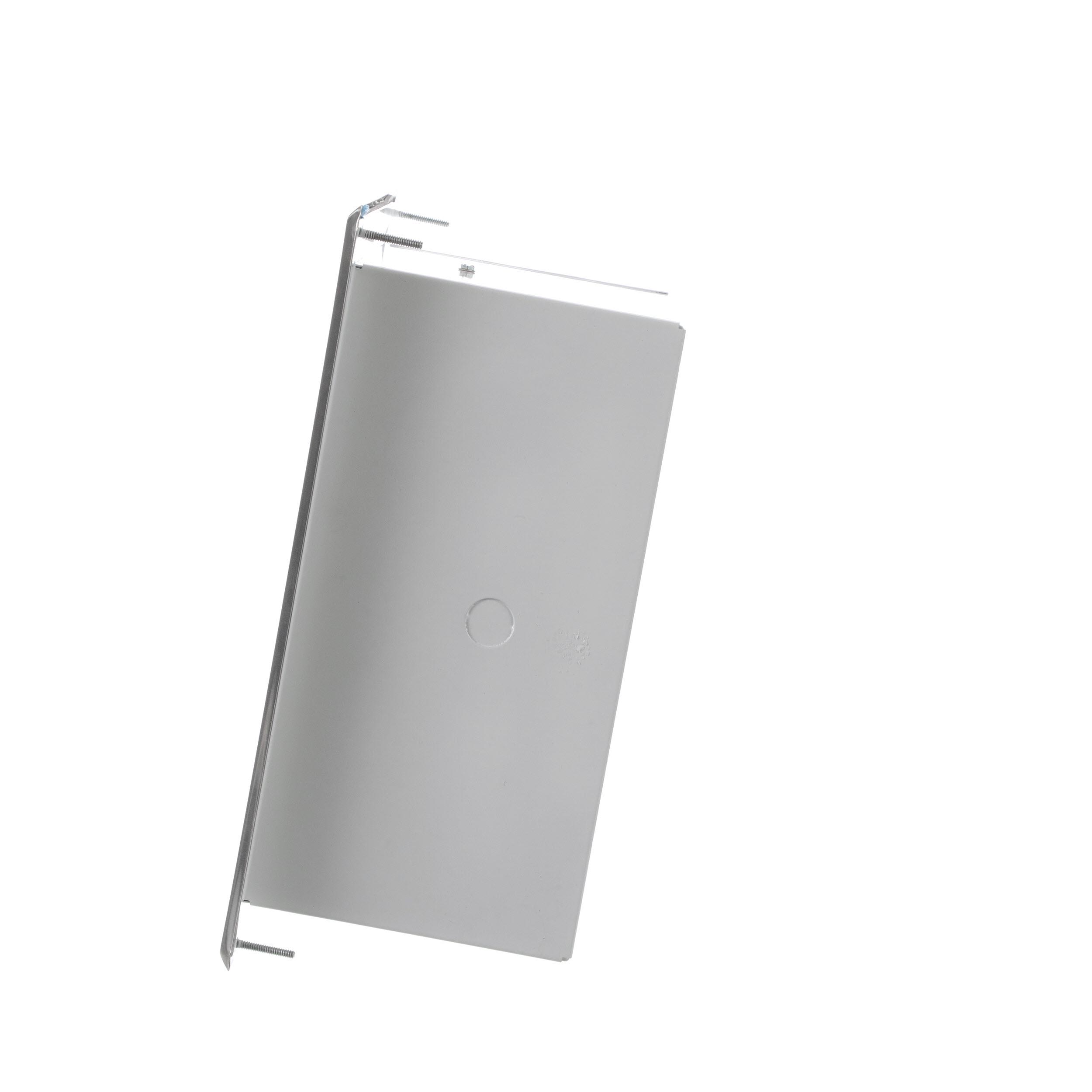

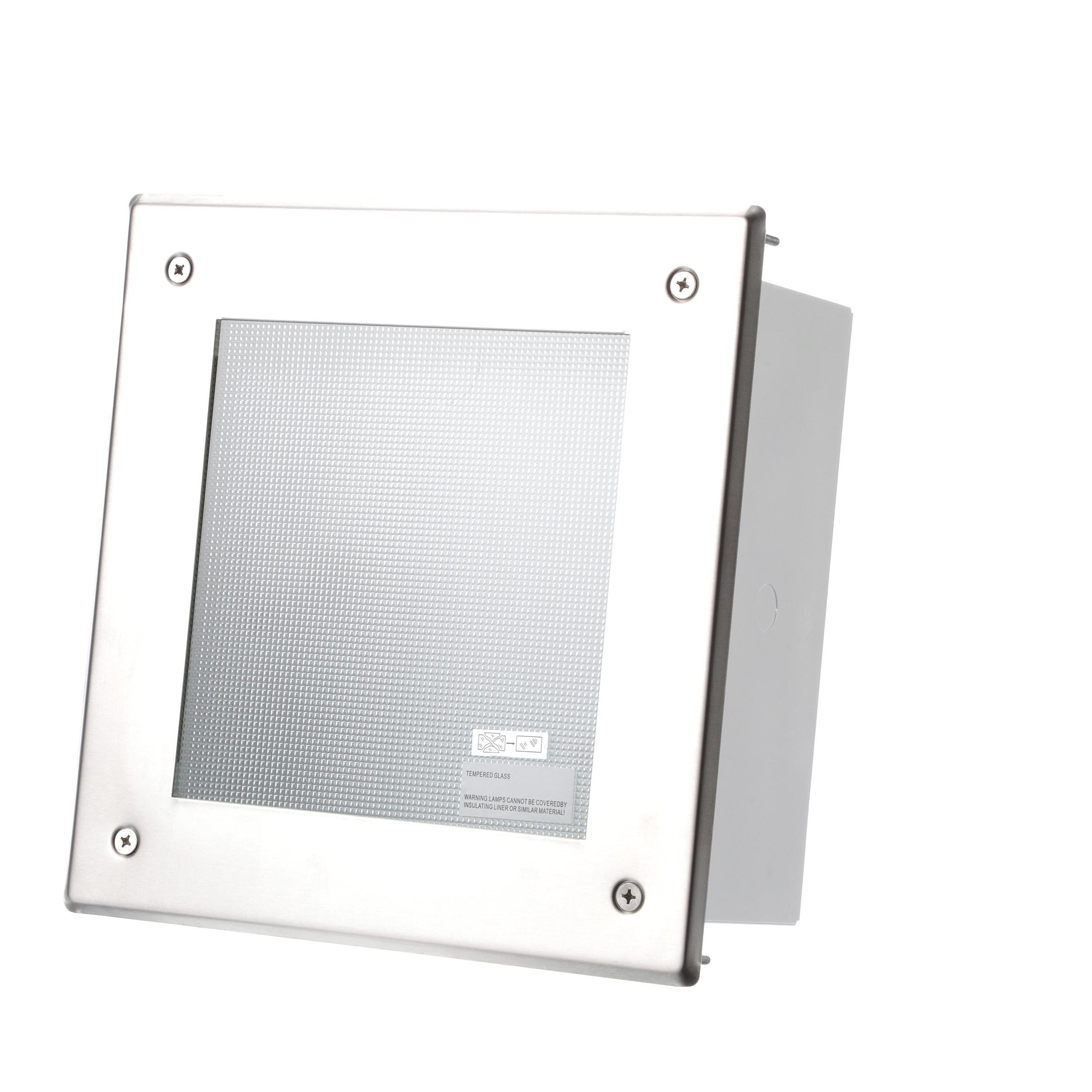

    12" Square Recessed Mount Incandescent Hood Light

    • 12" Square Recessed Incandescent Hood Light
    • Tempered, prismatic glass diffuser with safety retaining cable
    • 6" low profile housing for limited overhead clearance applications
    • Satin finished stainless steel faceplate to match hood interior
    • Meets all requirements for NFPA and N.E.C. 410
    • 12" square cut-out size
    • 13-7/8" square overall trim size
    • Supplied with four #10-24 x 3/4" L threaded mounting studs
    • Rated 120 VAC, 60 Hz
    • Side-mounted porcelain socket accepts one A23 medium base bulb (not furnished) up to 150 Watts
    • White enameled steel housing with stainless steel face plate
    Model No: L87-1004
    Item No.: 1007648

    Related Resources


    SPC-L87-100x-xx.pdf
    $146.44
    Products specifications
    FINISH / COLOR SATIN FINISH FACE
    APPLICATION CANOPY HOOD
    MOUNTING STYLE RECESSED
    VOLTAGE 120
    CYCLES 60 HZ
    GLOBE / LENS MATERIAL TEMPERED PRISMATIC GLASS
    BULB / LAMP TYPE A23
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    SECONDARY MATERIAL STAINLESS STEEL
    ATTRIBUTES COMPLETE YES
