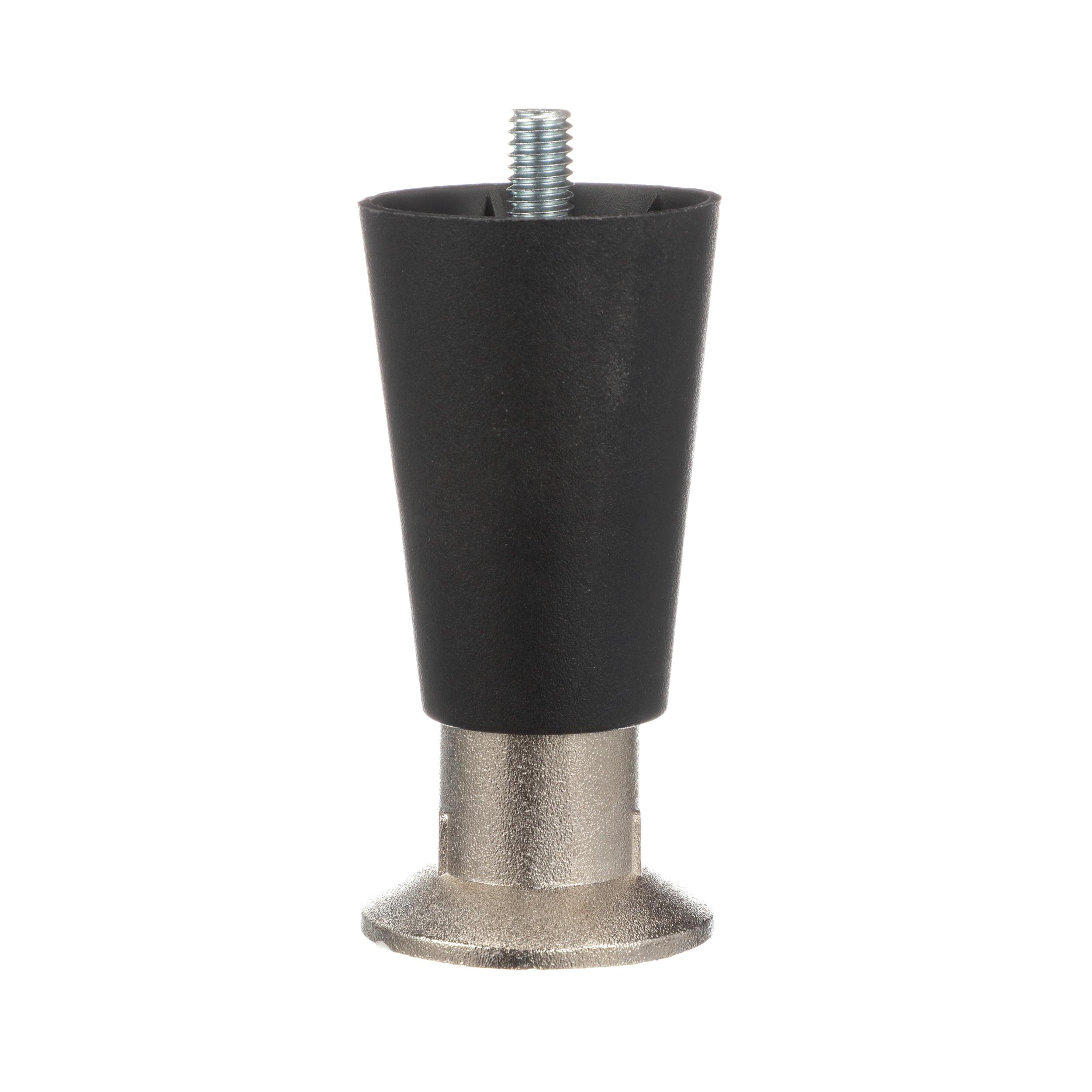

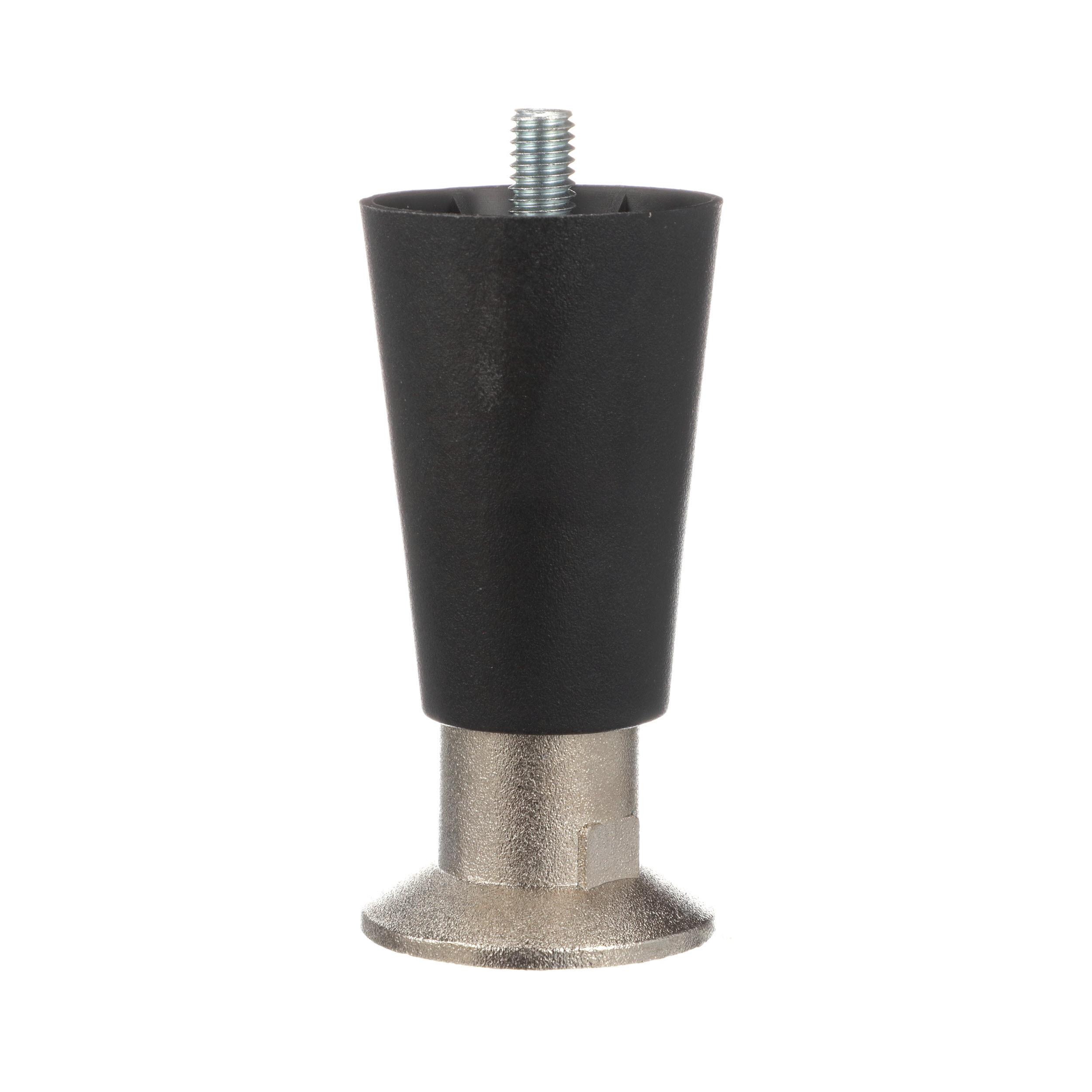

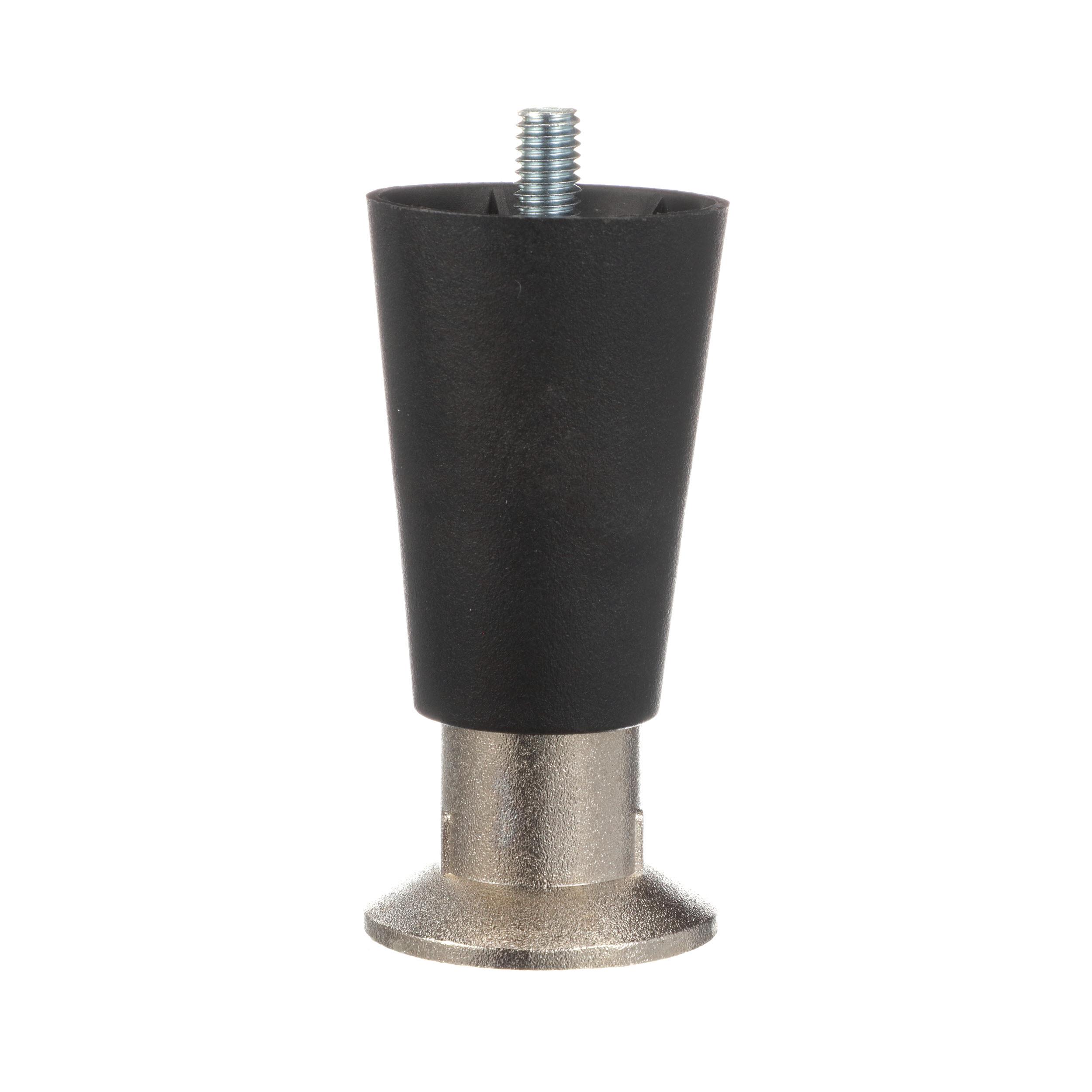

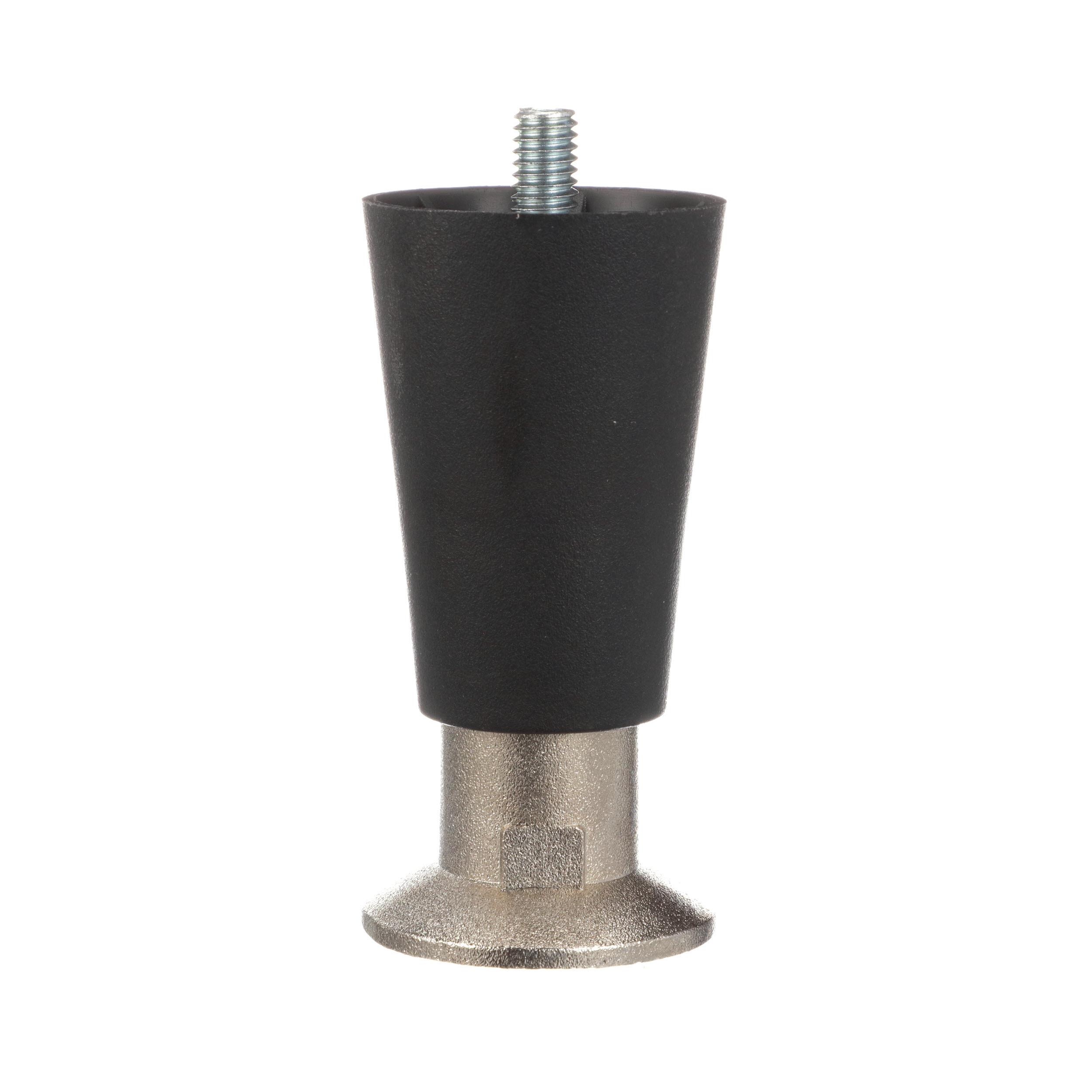

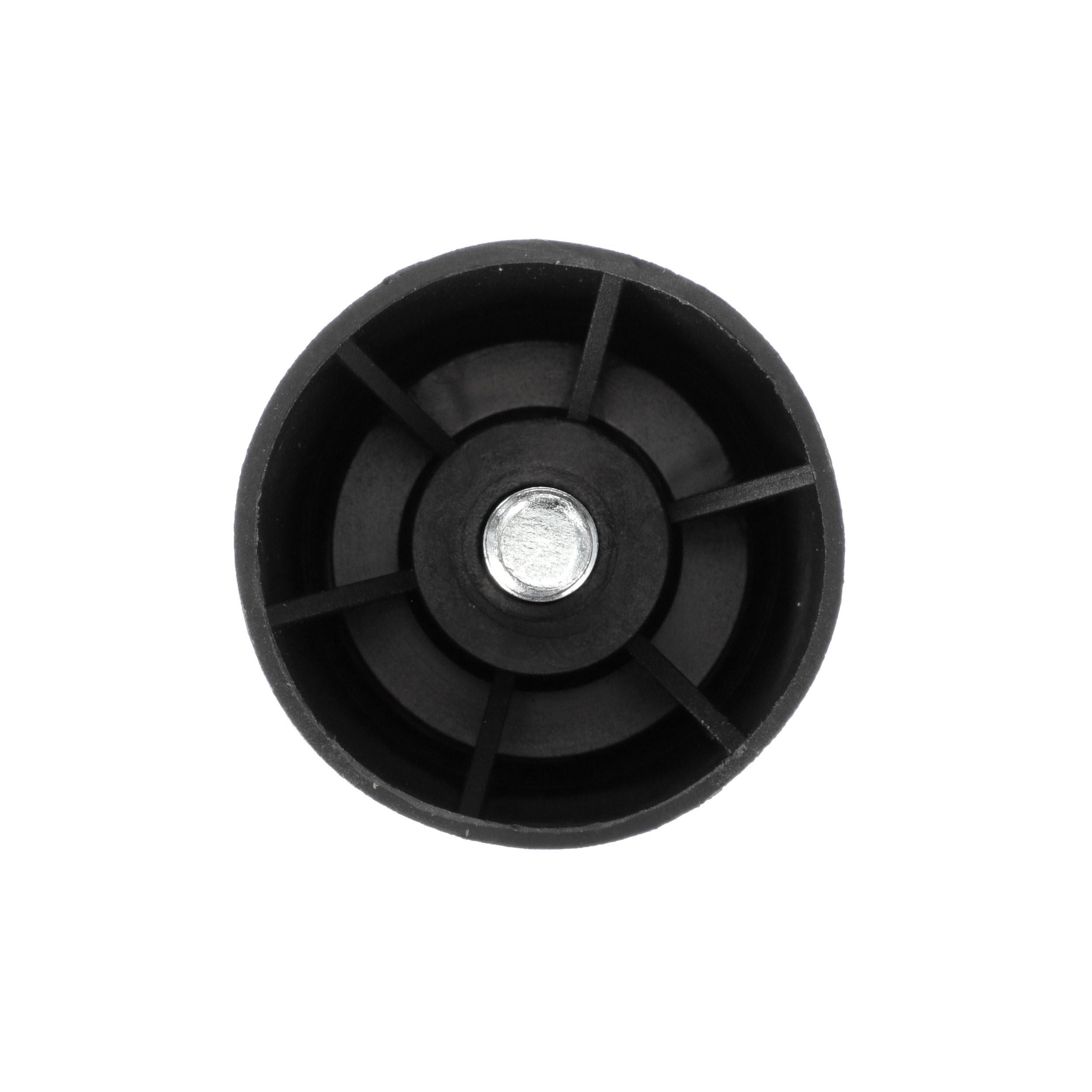

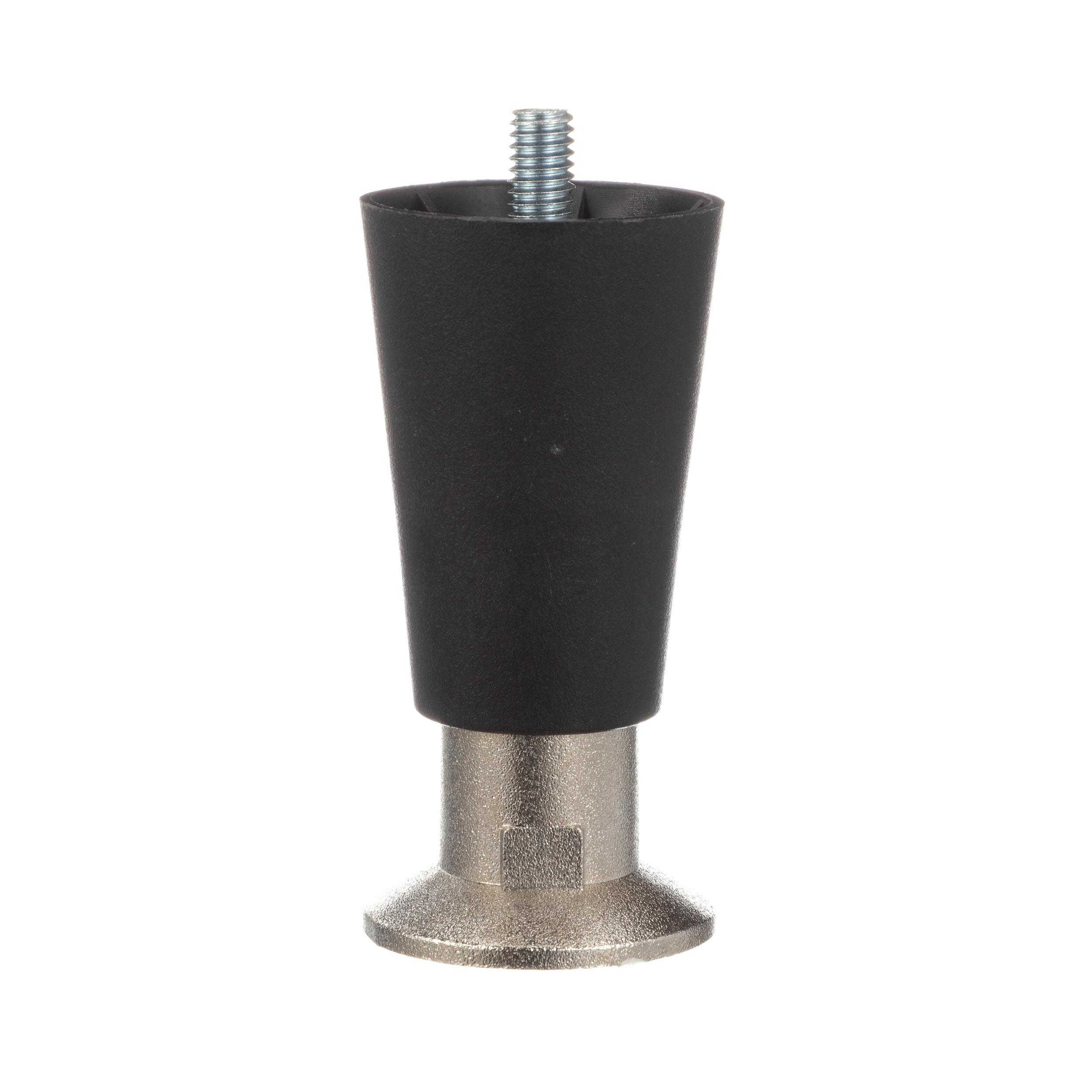

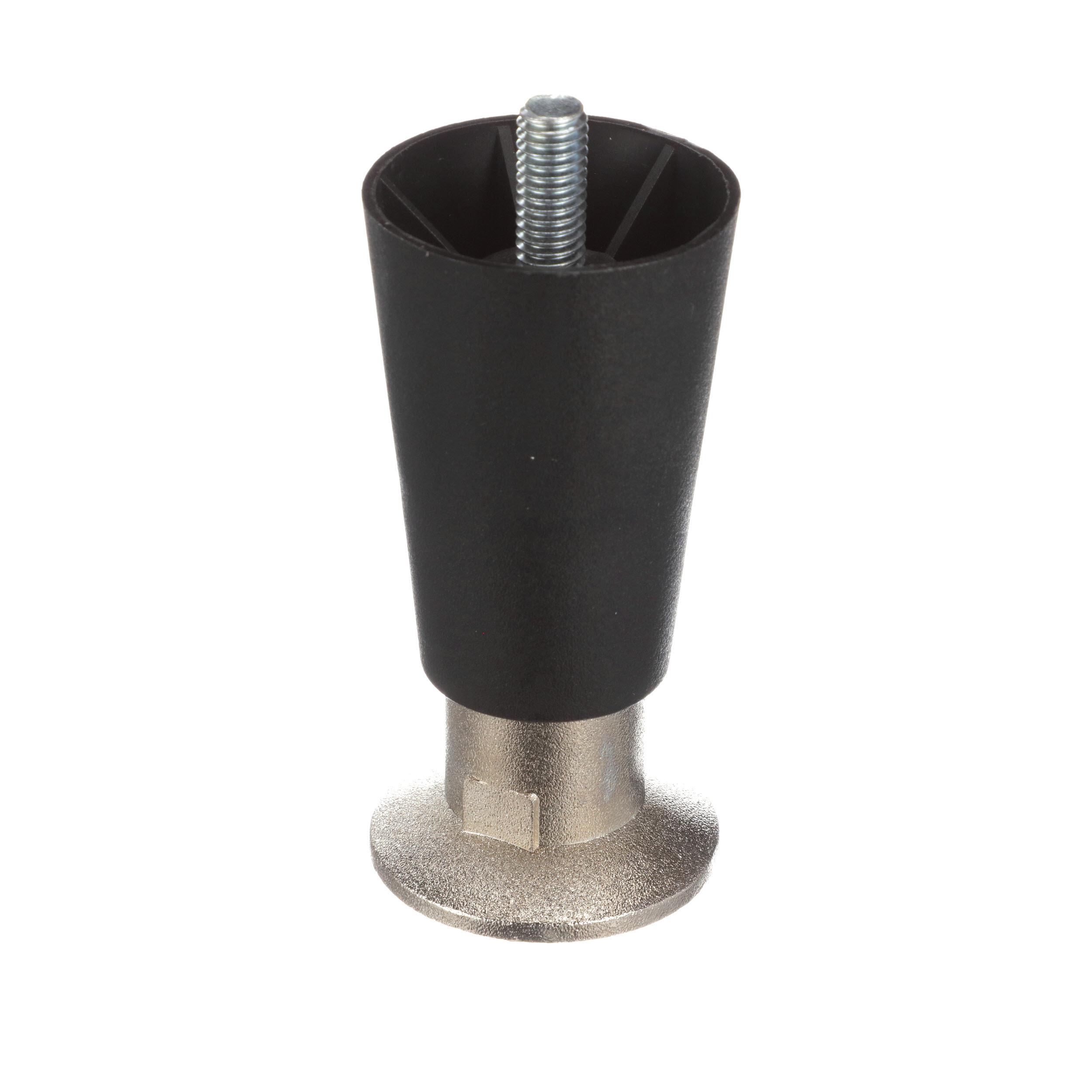

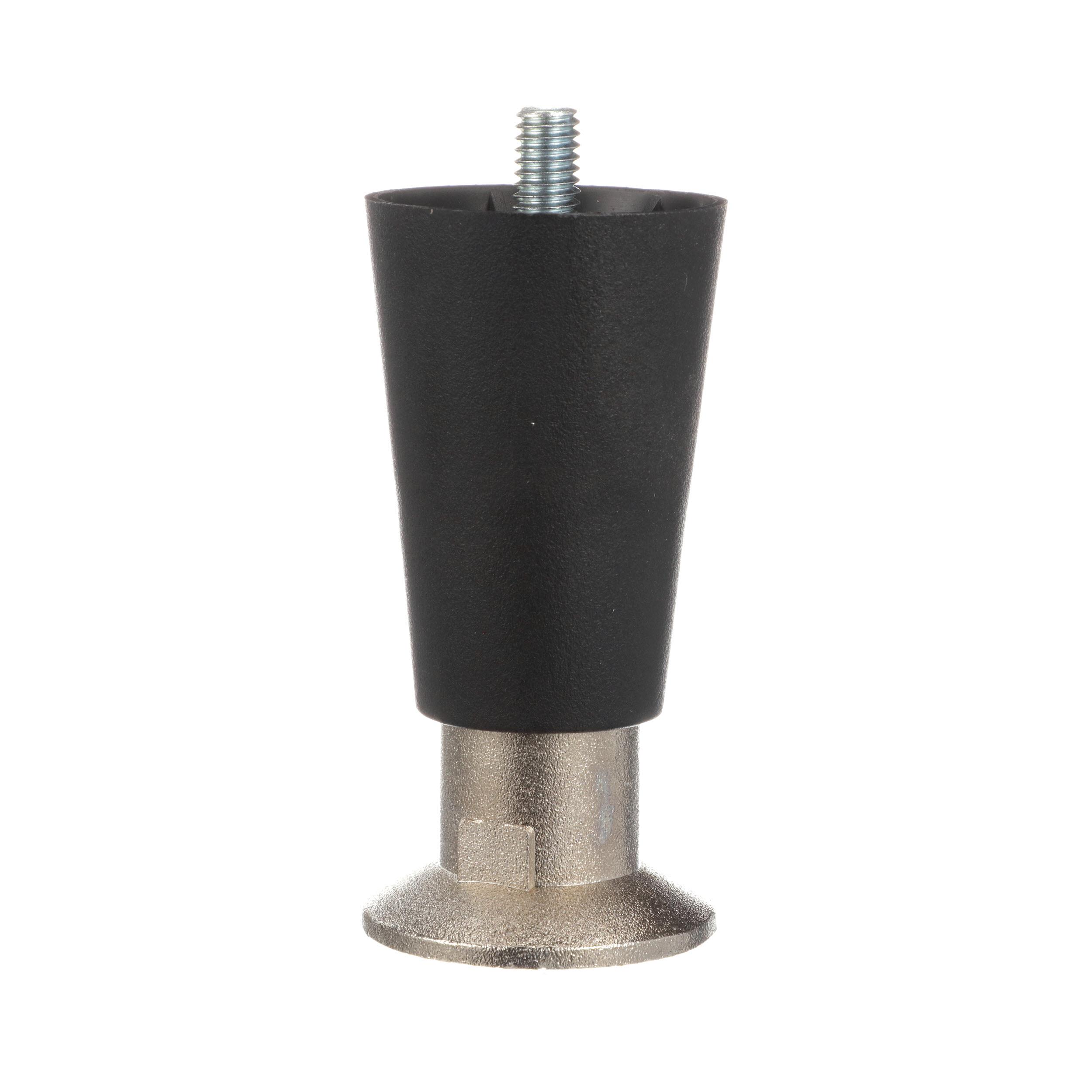

    4" H Black High Temperature Thermoplastic Appliance Leg With 3/8-16 x 1/2" L Protruding Stud and Nickel Plated Die Cast Flanged Toe

    Be the first to review this product
    • 4" H Black High Temperature Thermoplastic Appliance Leg With 3/8-16 x 1/2" L Protruding Stud and Nickel Plated Die Cast Flanged Toe
    • Specifically designed for large countertop heated appliances, such as griddles
    • Thermoplastic body material is rated to 300°F constant, 350°F intermittent operating temperature
    • 2"OD tapered matte black temperature-resistant thermoplastic body
    • 4" OA height in closed position
    • 1/2-13 x 1/2" L protruding mounting stud
    • 2" diameter adjustable nickel plated die cast flanged toe provides up to 1-1/4" adjustment for leveling of equipment
    • Wrench flats on flange toe permit easy field adjustment during installation
    • Optional pressure sensitive, non-skid, neoprene rubber pad available (Order separately as A70-X011)
    • 2,000 lbs static load rating
    Model No: A71-1020
    Item No.: 1001796

    Related Resources


    SPC-A71-1020.pdf
    $9.30
    i h
    Products specifications
    LOAD RATING2000
    FINISH / COLORMATTE BLACK
    LEG HEIGHT4
    LEG MOUNTING TYPEPROTRUDE STUD
    TOE TYPEMATTE NICKEL PLATED ZINC FLANGE
    MEASUREMENT TYPEIMPERIAL
    PRIMARY MATERIALHIGH-TEMP THERMOPLASTIC
    SECONDARY MATERIALZINC
    ADJUSTMENT RANGE001.250
