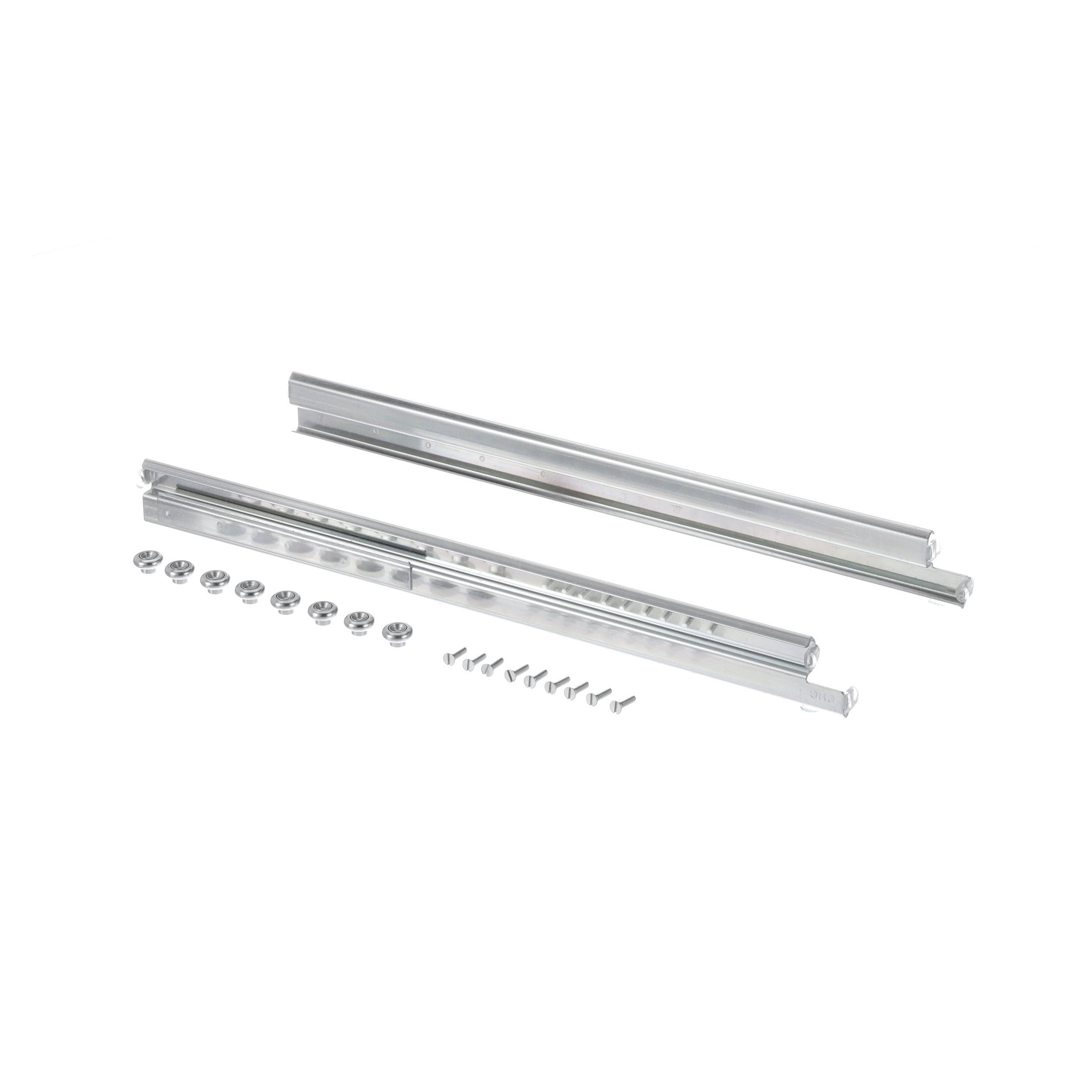

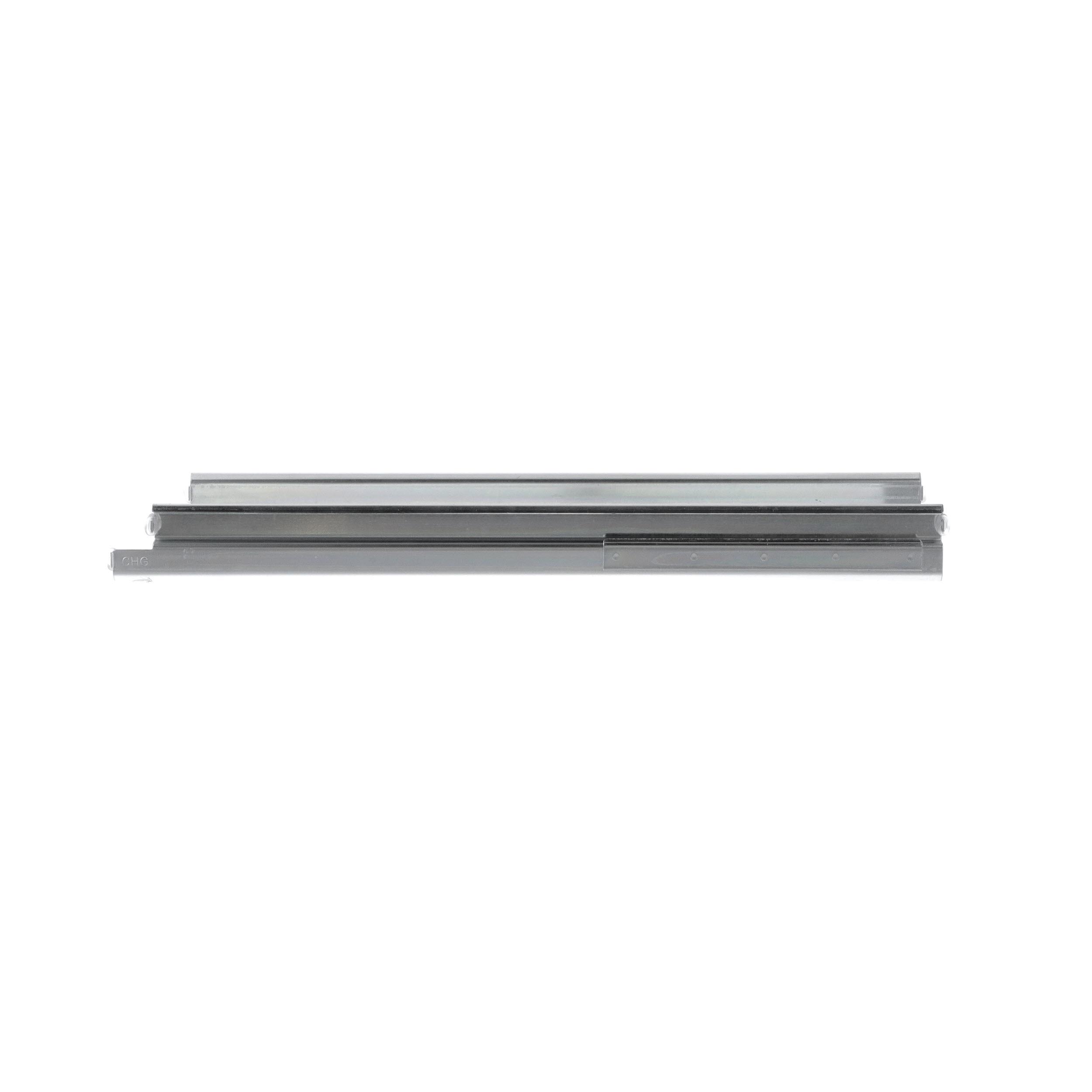

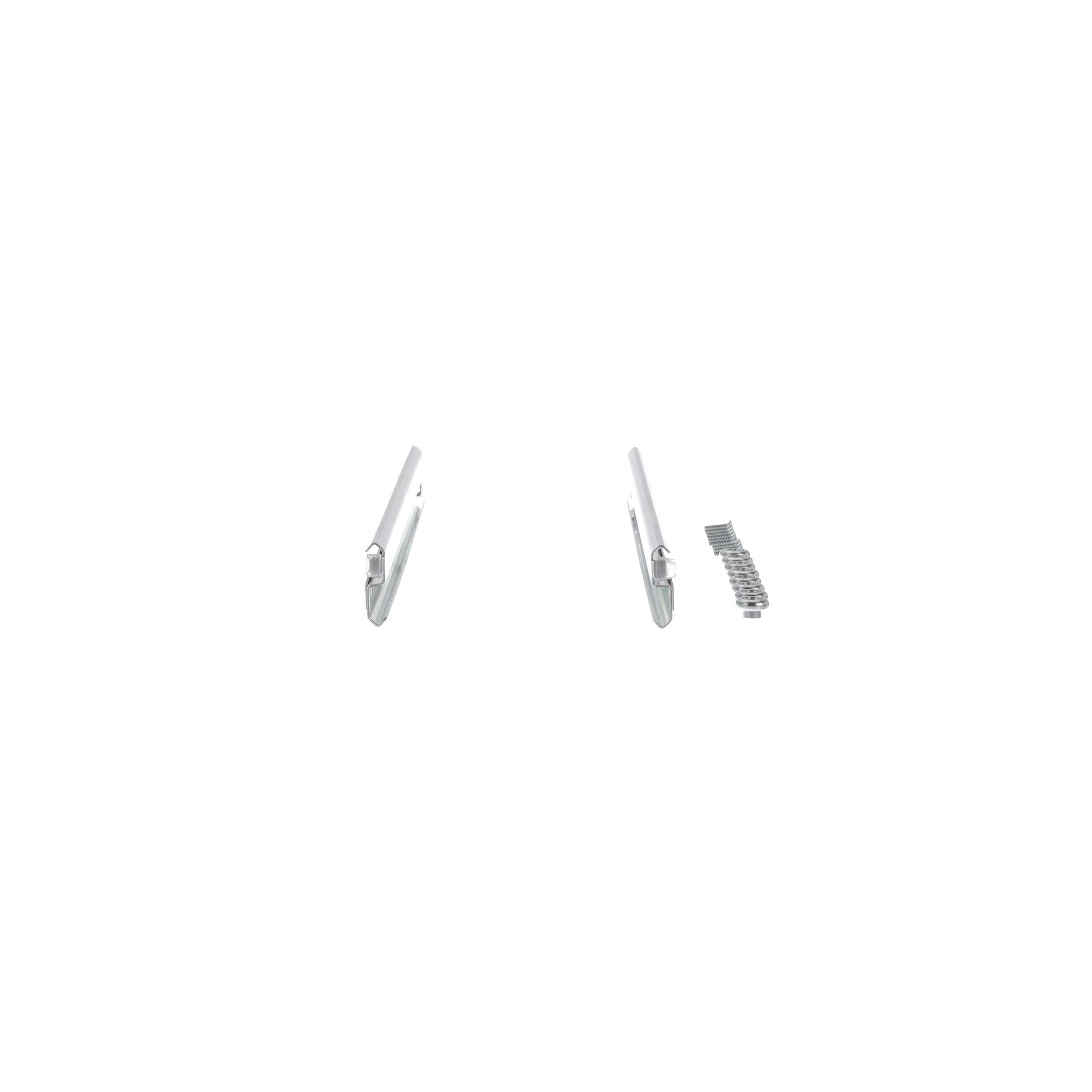

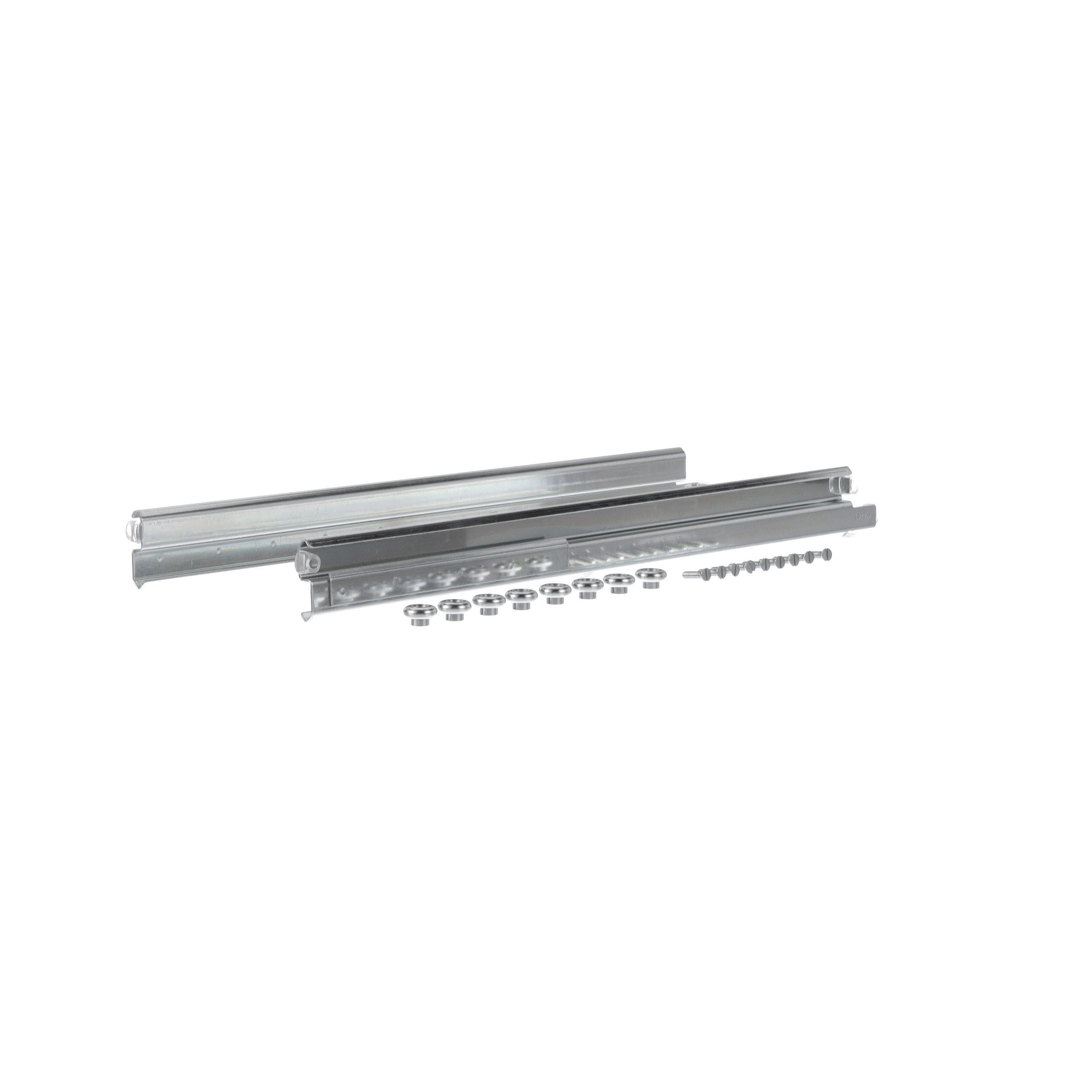

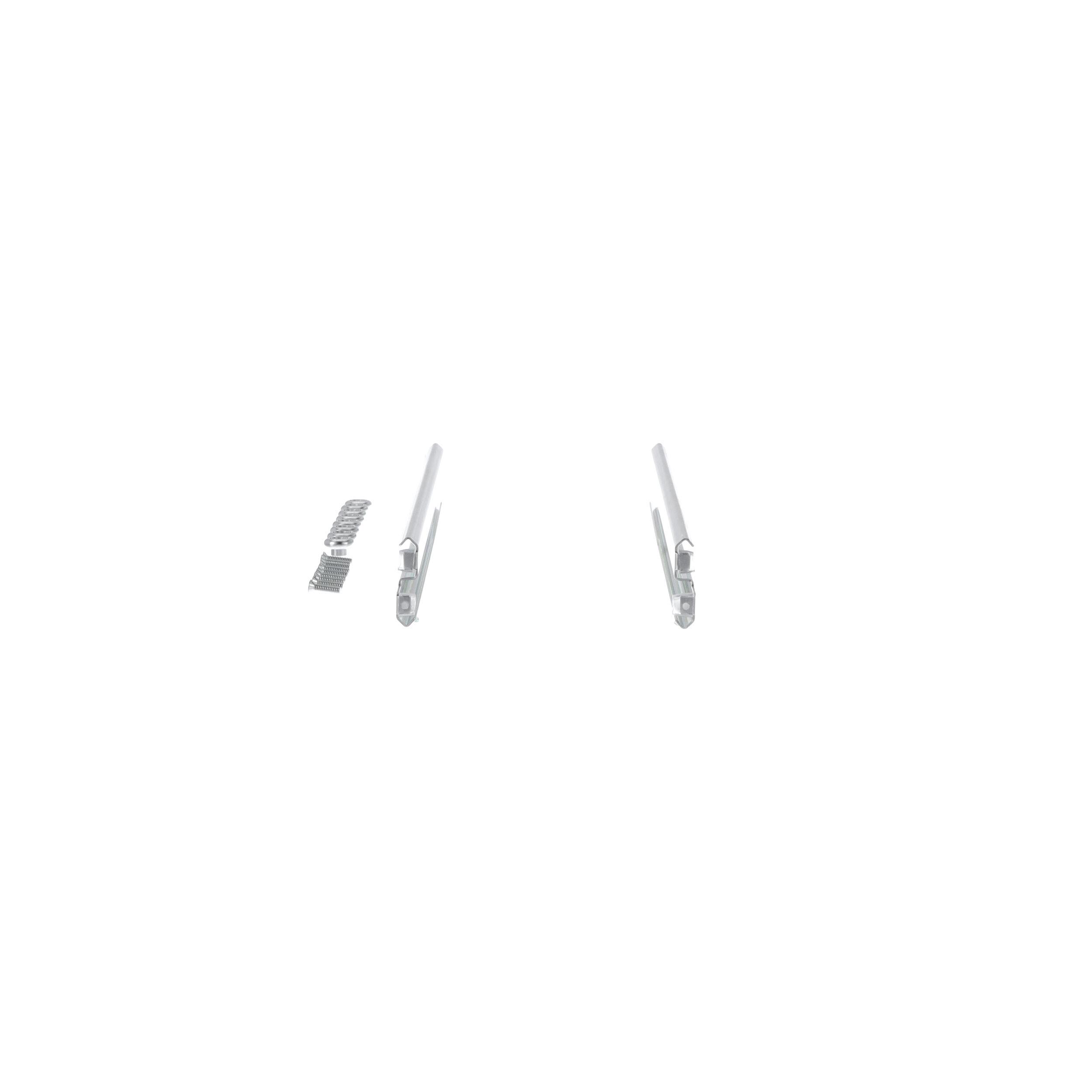

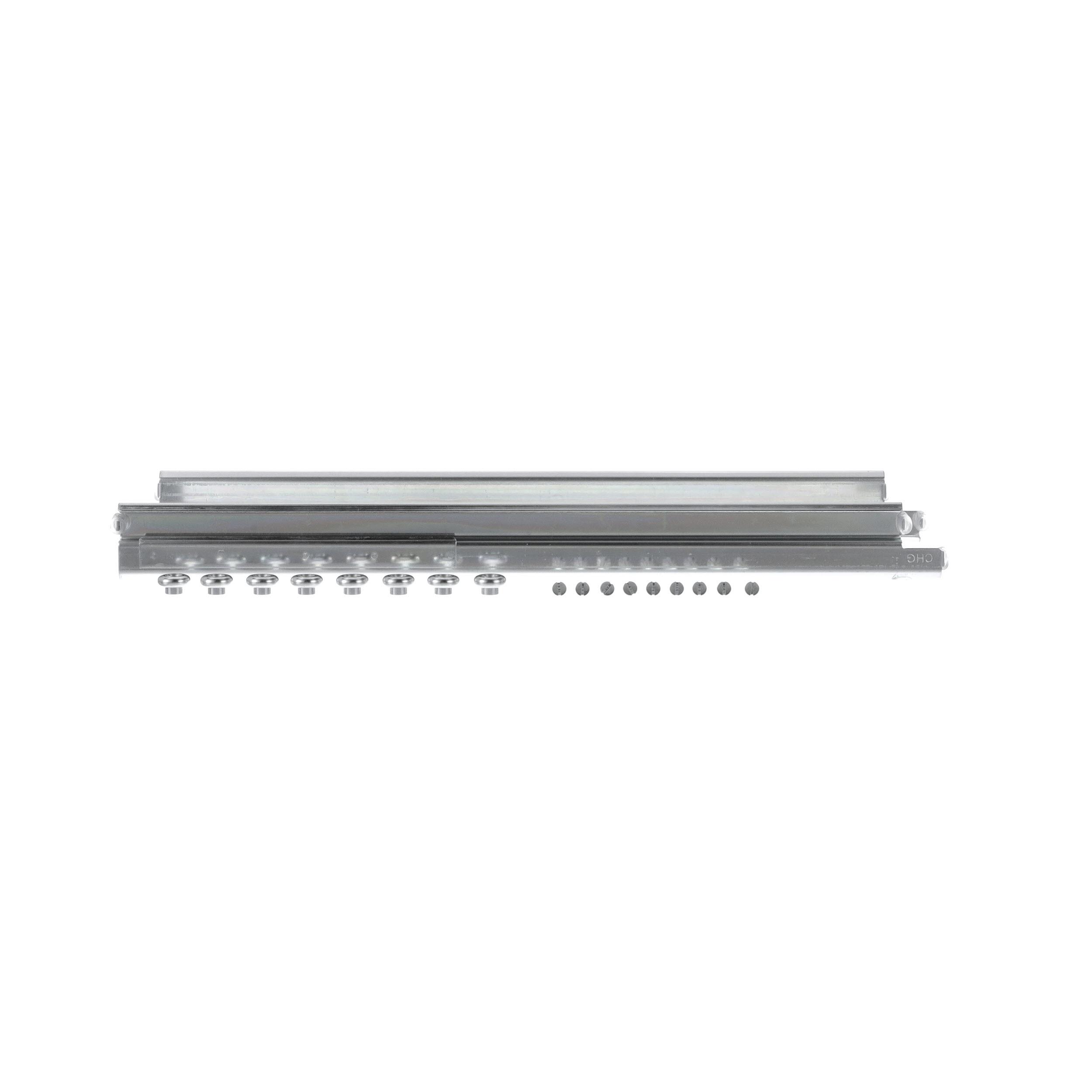

    22" L Zinc Plated Steel 100 lbs Capacity Full Extension Drawer Slide with Bearings

    Be the first to review this product
    • 22" L Zinc Plated Steel Full Extension Drawer Slide with Bearings
    • Economical zinc plated steel
    • Full extension
    • 100 lbs (45kg) load capacity
    • Slides & rollers easily removed for cleaning
    • Includes (8) ball bearing assemblies
    • Retainer plates keep slides in position even when drawers are removed
    • Positive stops
    • Side mount
    • Clearance Required - 5/8" (15mm)
    • Height - 1-27/32" (21mm)
    • *Load rating based on 20" (508mm) slide length
    Model No: S10-0022
    Item No.: 1008938

    Related Resources


    INS-S10-S26 SERIES.pdf
    $52.88
    Products specifications
    LOAD RATING 100 LBS
    FINISH / COLOR ZINC PLATED
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    ATTRIBUTES COMPLETE YES
