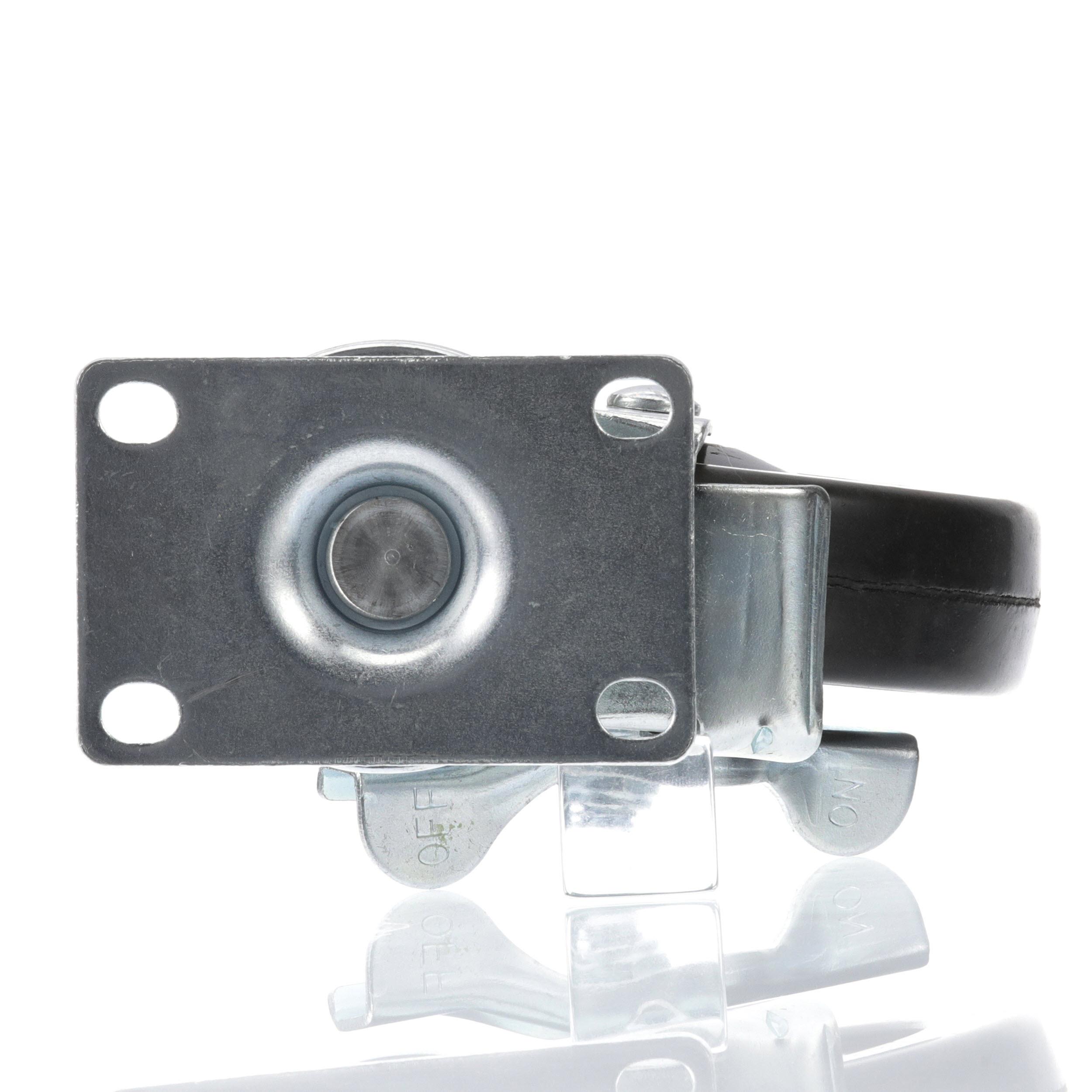

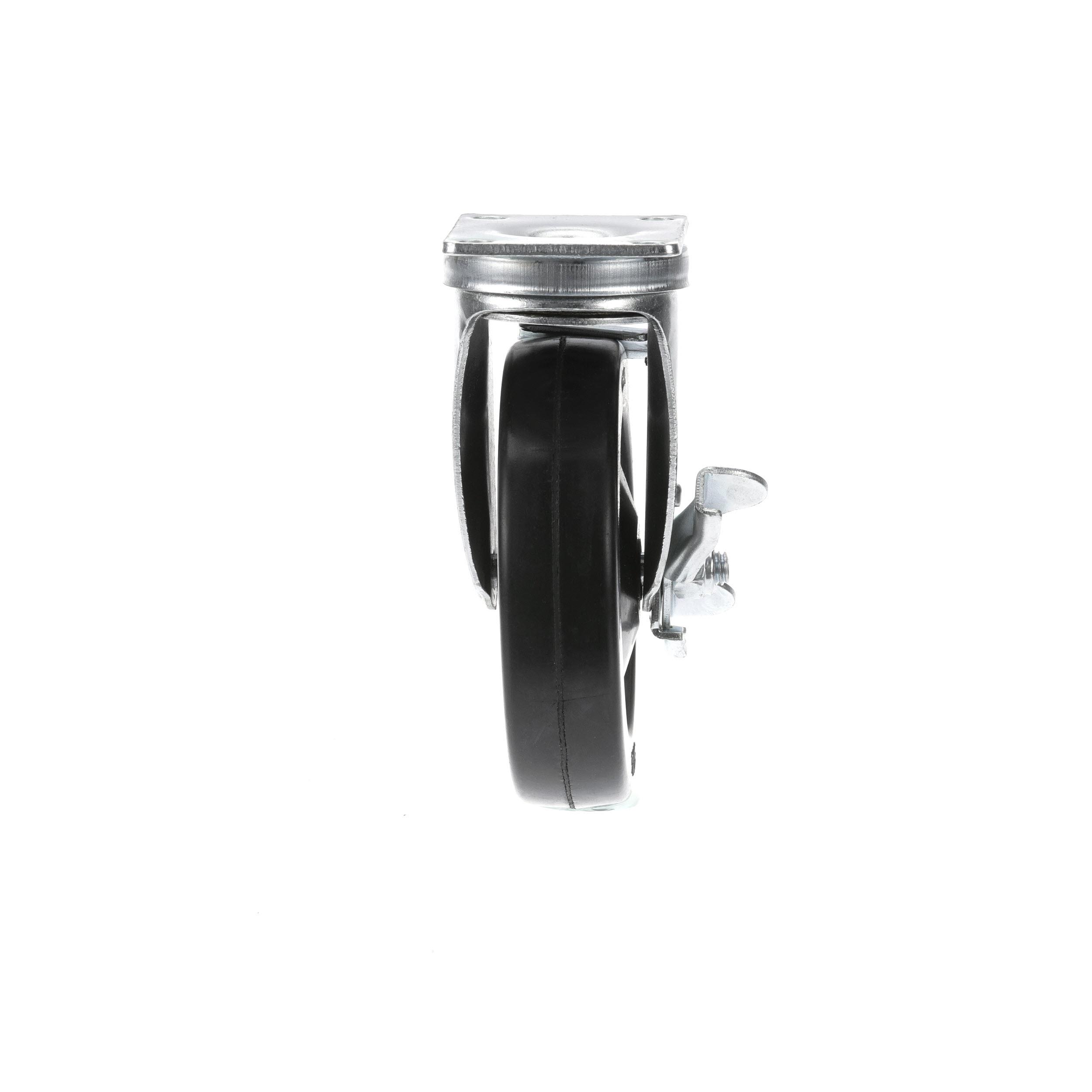

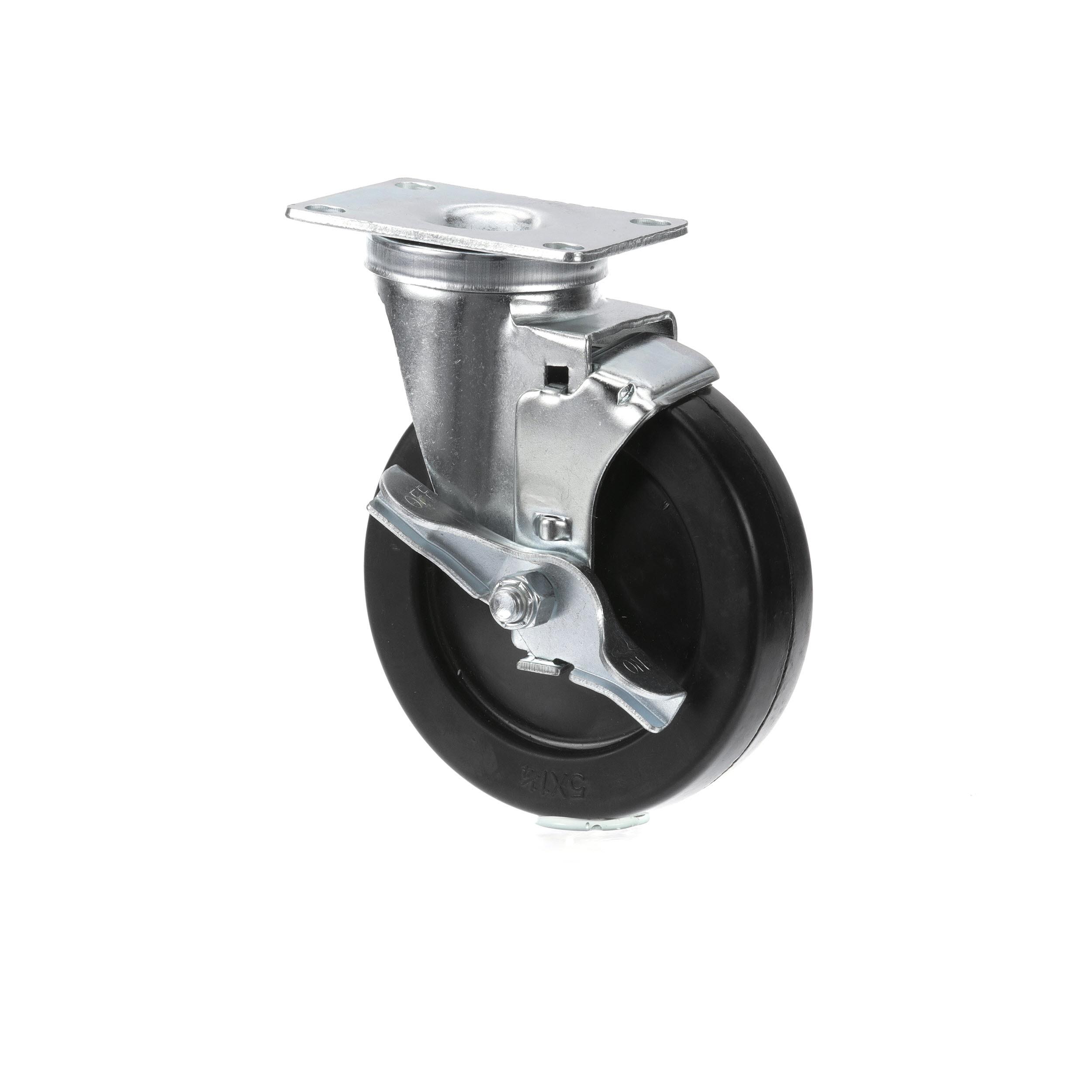

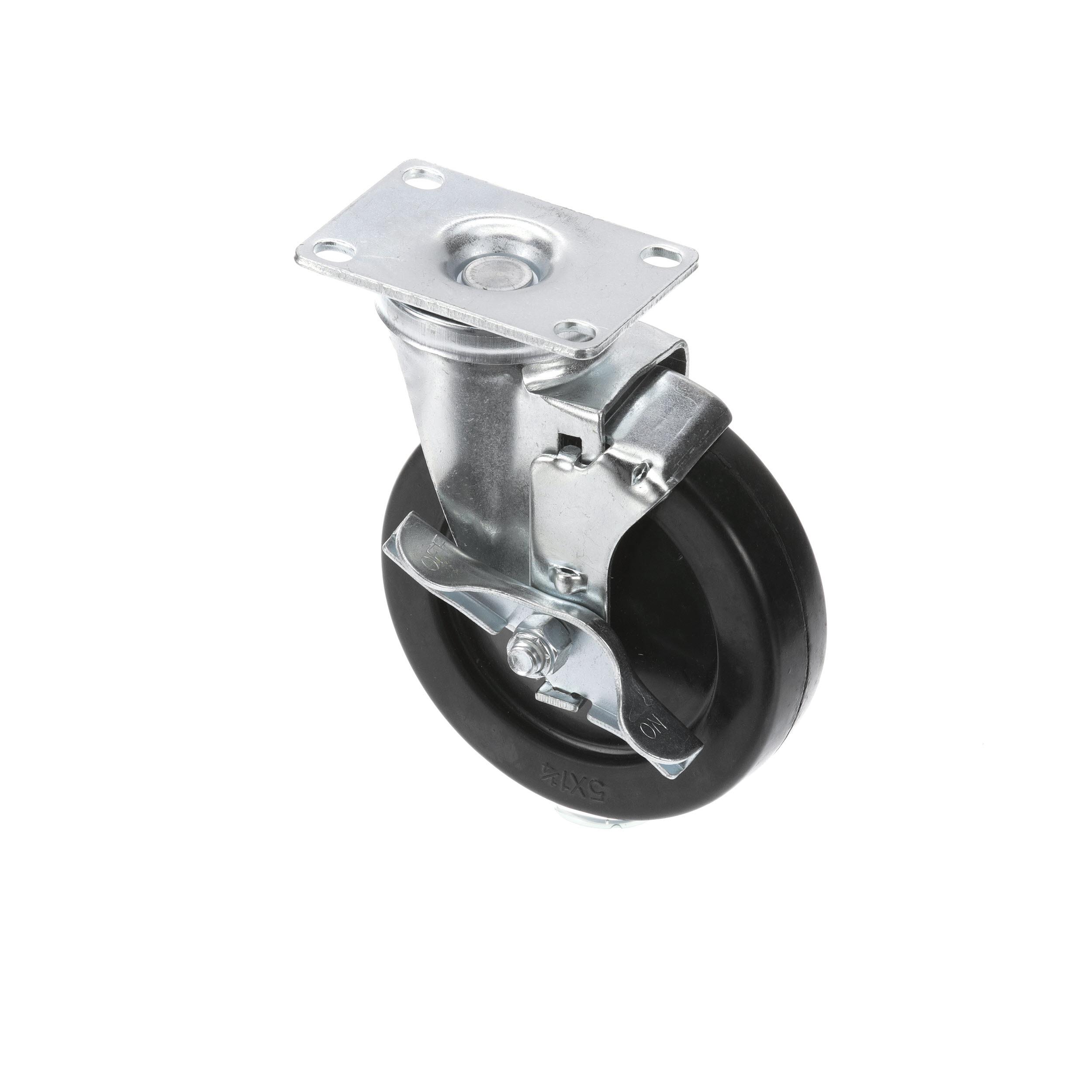

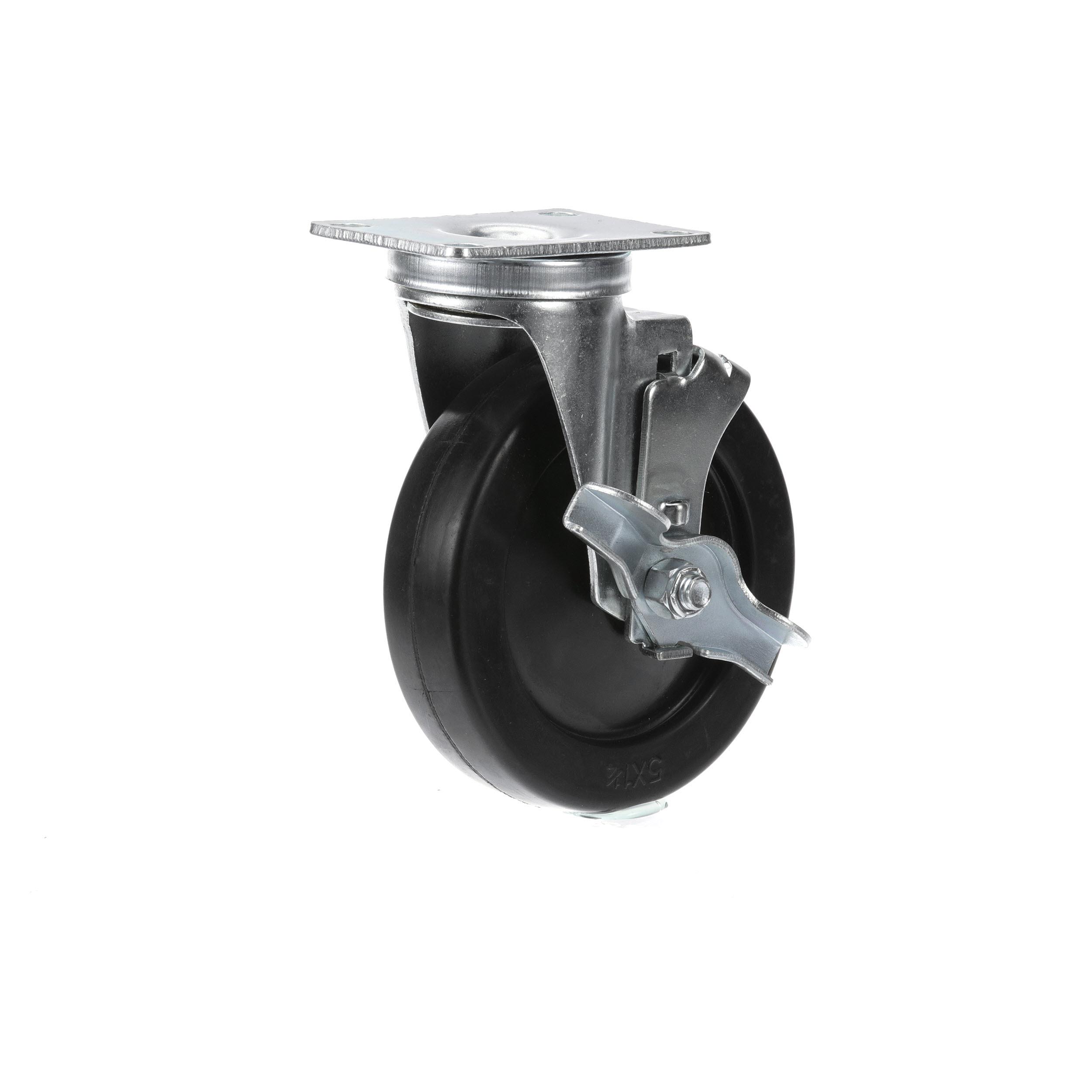

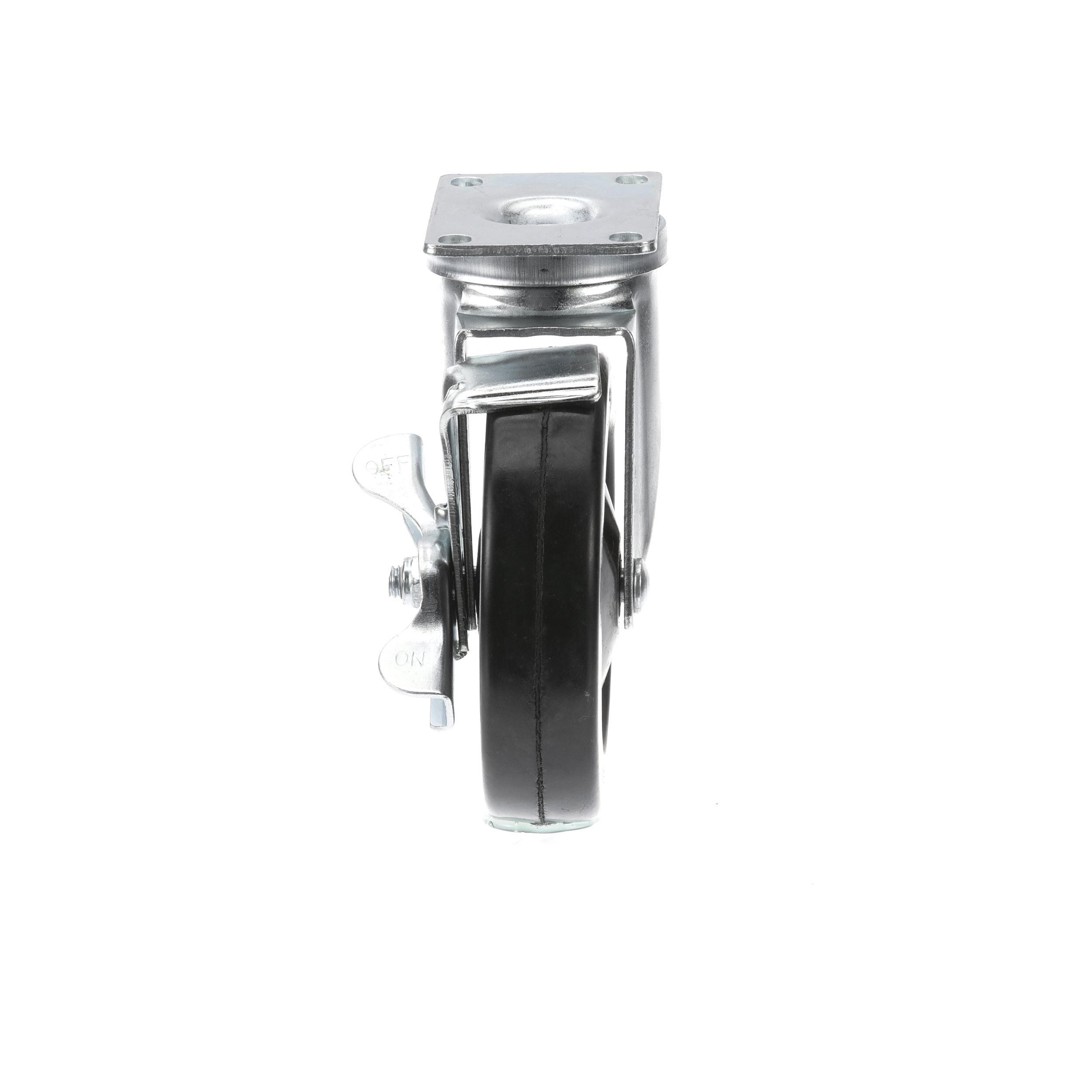

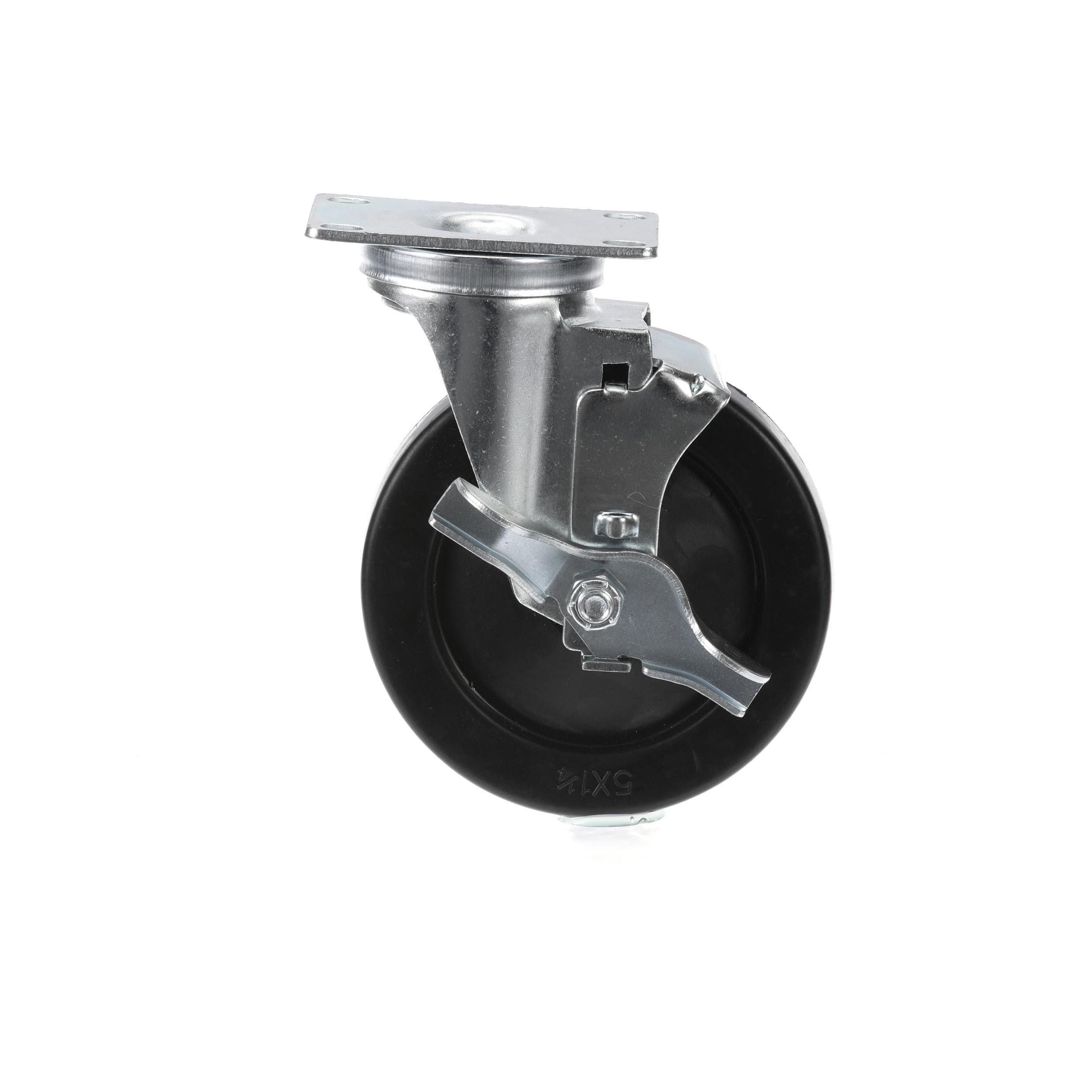

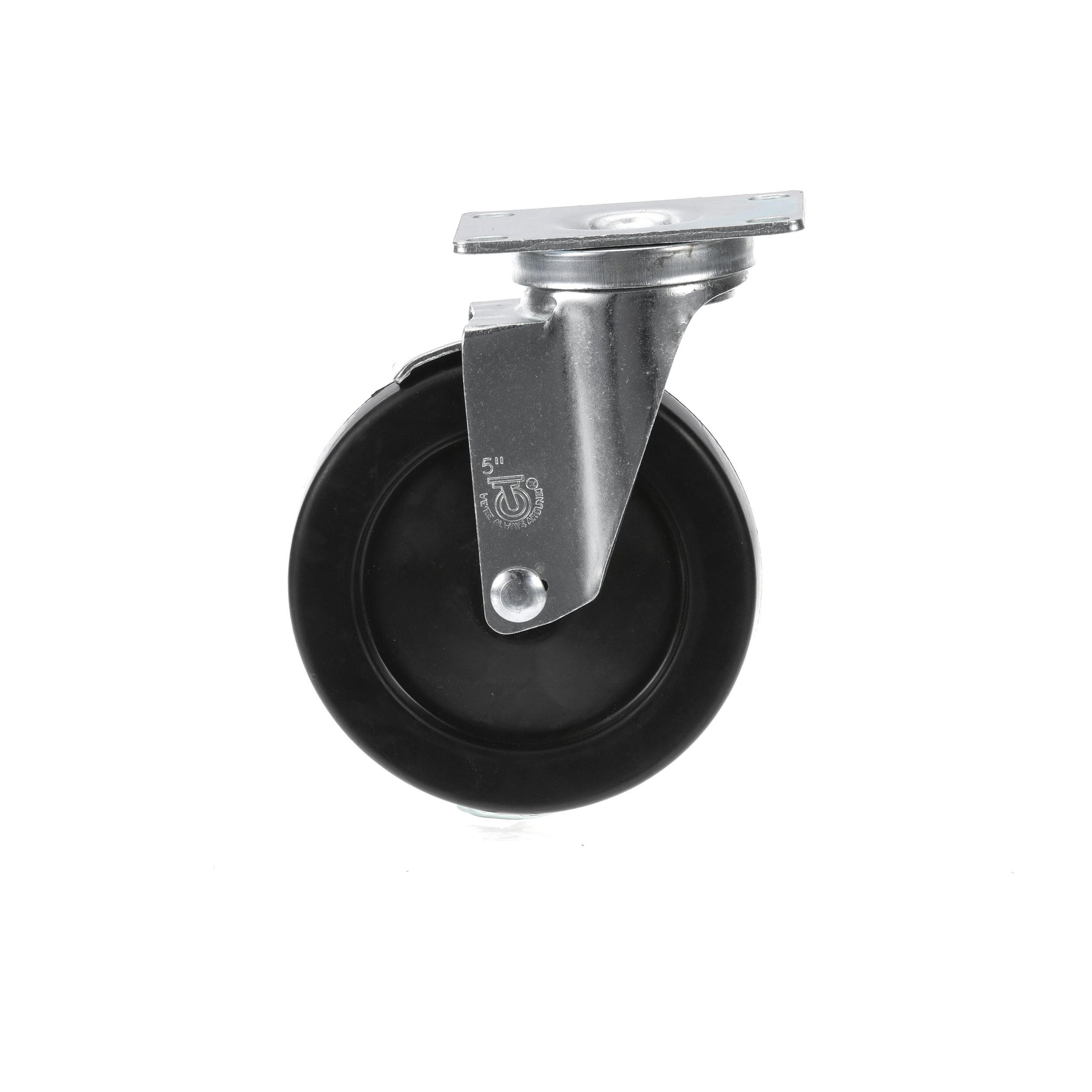

Medium Duty 2-3/8" x 3-5/8" Plate Caster With 5" Black Rubber Wheel And Brake

Medium Duty 2-3/8" x 3-5/8" Plate Caster With 5" Black Rubber Wheel And Brake
Zinc plated steel yoke construction
1-1/4" (32mm) tread width
5" (127mm) OD black solid rubber wheel
Furnished With Side Brake
Load capacity 200 lbs. (90kg) per wheel
6-1/8" (155mm) load height
4" (102mm) swivel radius
2-3/8" x 3-5/8" (60mm x 90mm) mounting plate with mounting holes spaced on 1-3/4" x 3" (45mm x 75mm) centers
Mounting holes accept 1/4" or 5/16" diameter bolts/screws

Model No: C21-1051

Item No.: 1002362

Related Resources

$53.93

Qty:

i h

Products specifications
