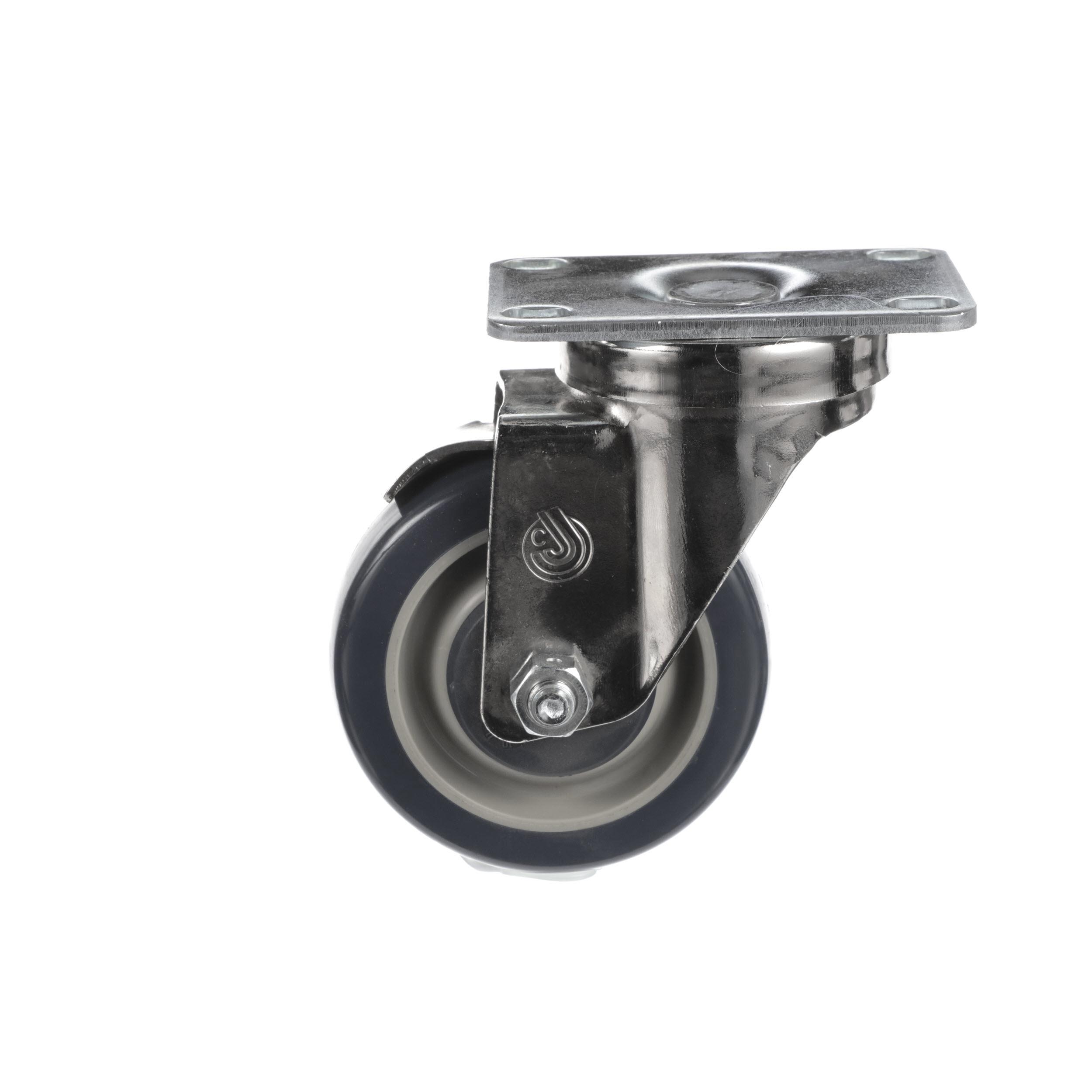

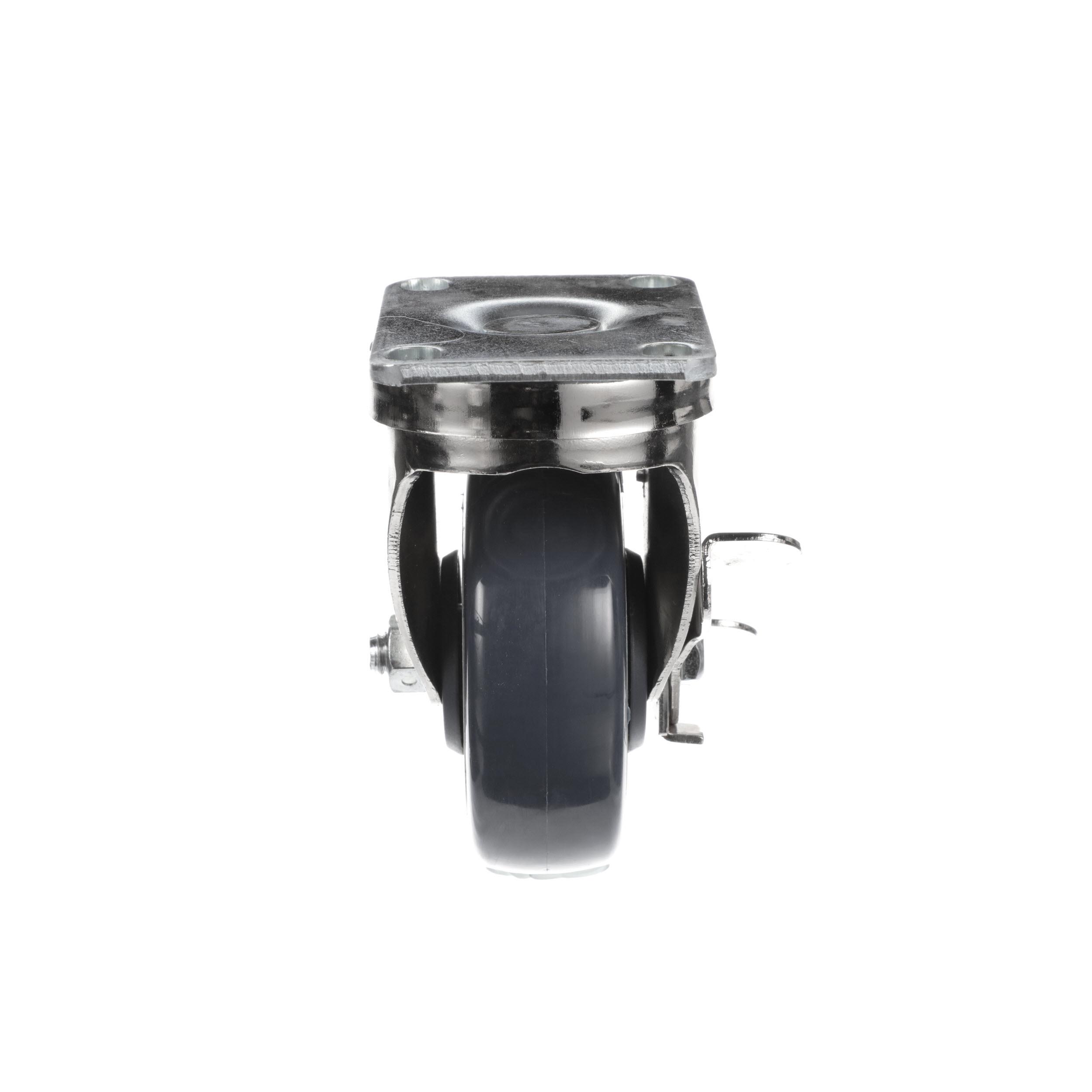

Medium Duty 2-3/8" x 3-5/8" Plate Caster With 3-1/2" Blue Polyurethane Wheel And Brake

Medium Duty 2-3/8" x 3-5/8" Plate Caster With 3-1/2" Blue Polyurethane Wheel And Brake
Zinc plated steel yoke construction
1-1/4" (32mm) tread width
3-1/2" (89mm) OD blue polyurethane wheel

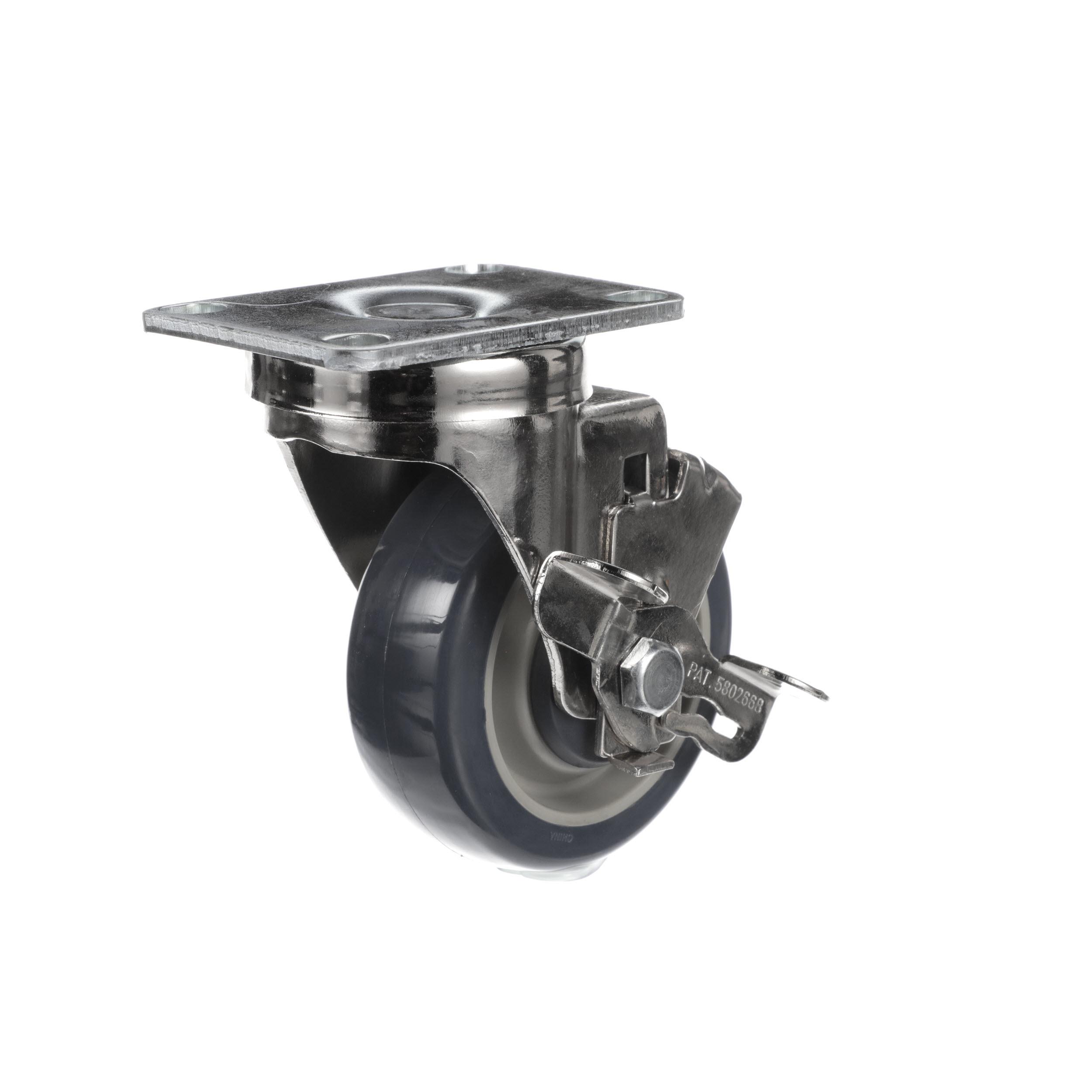

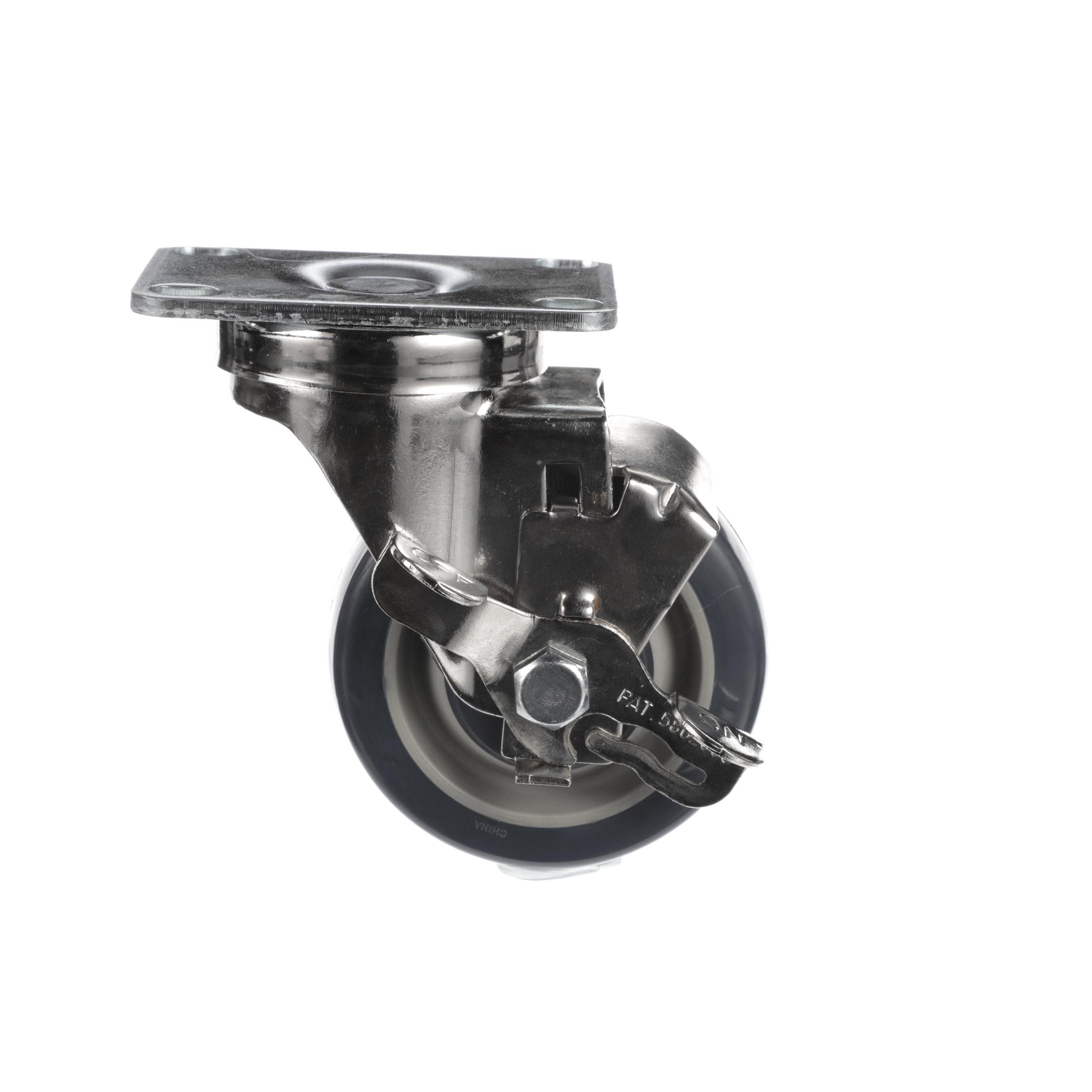

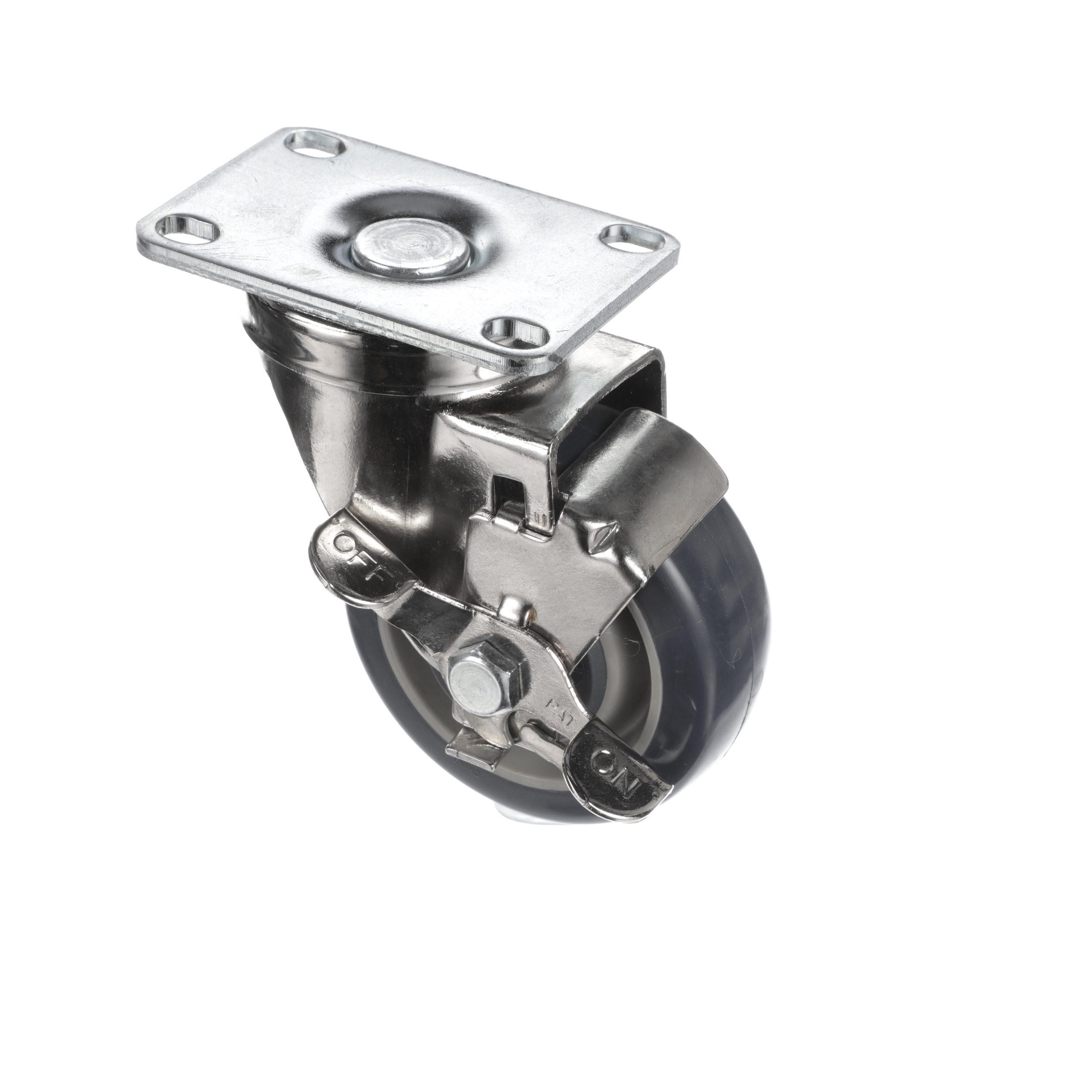

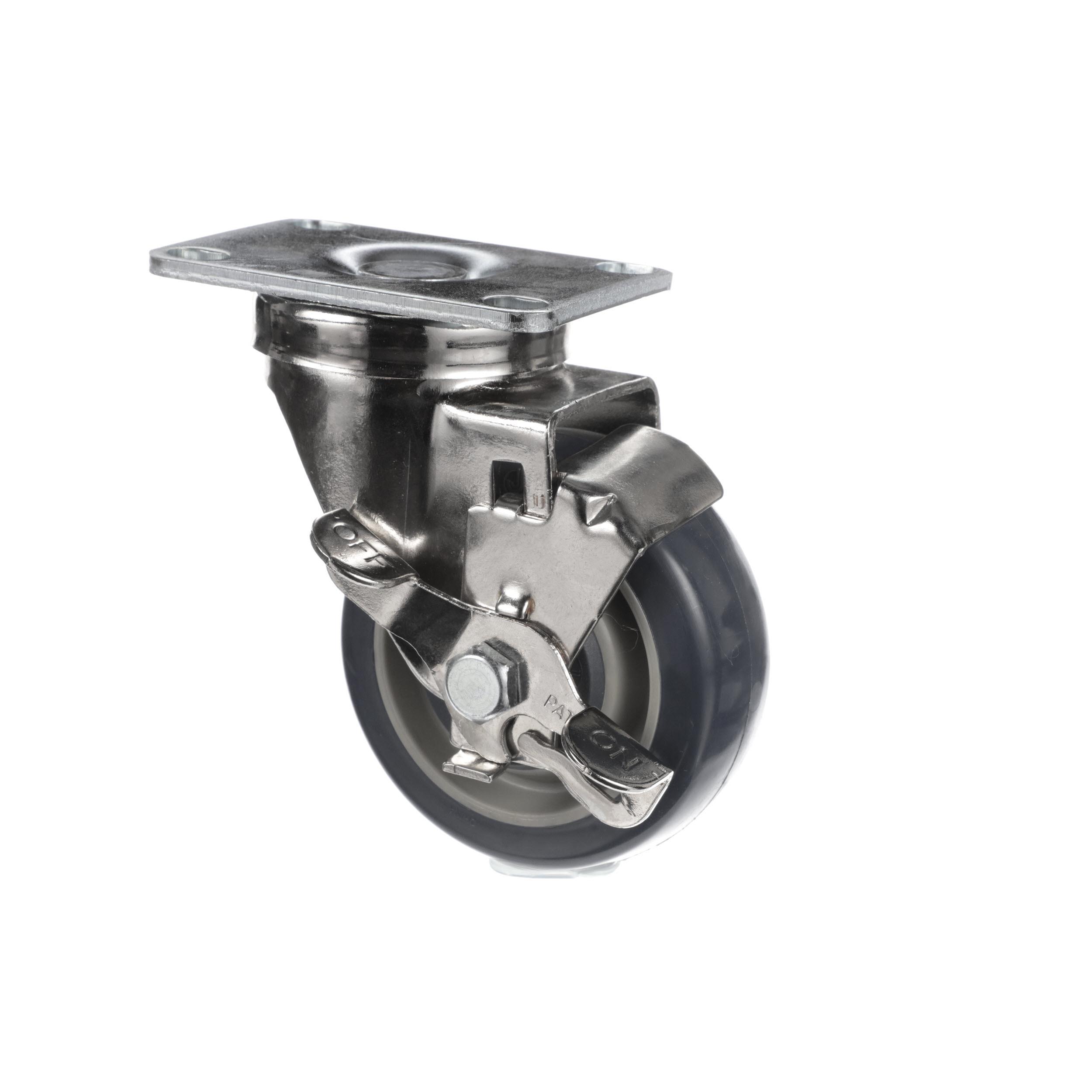

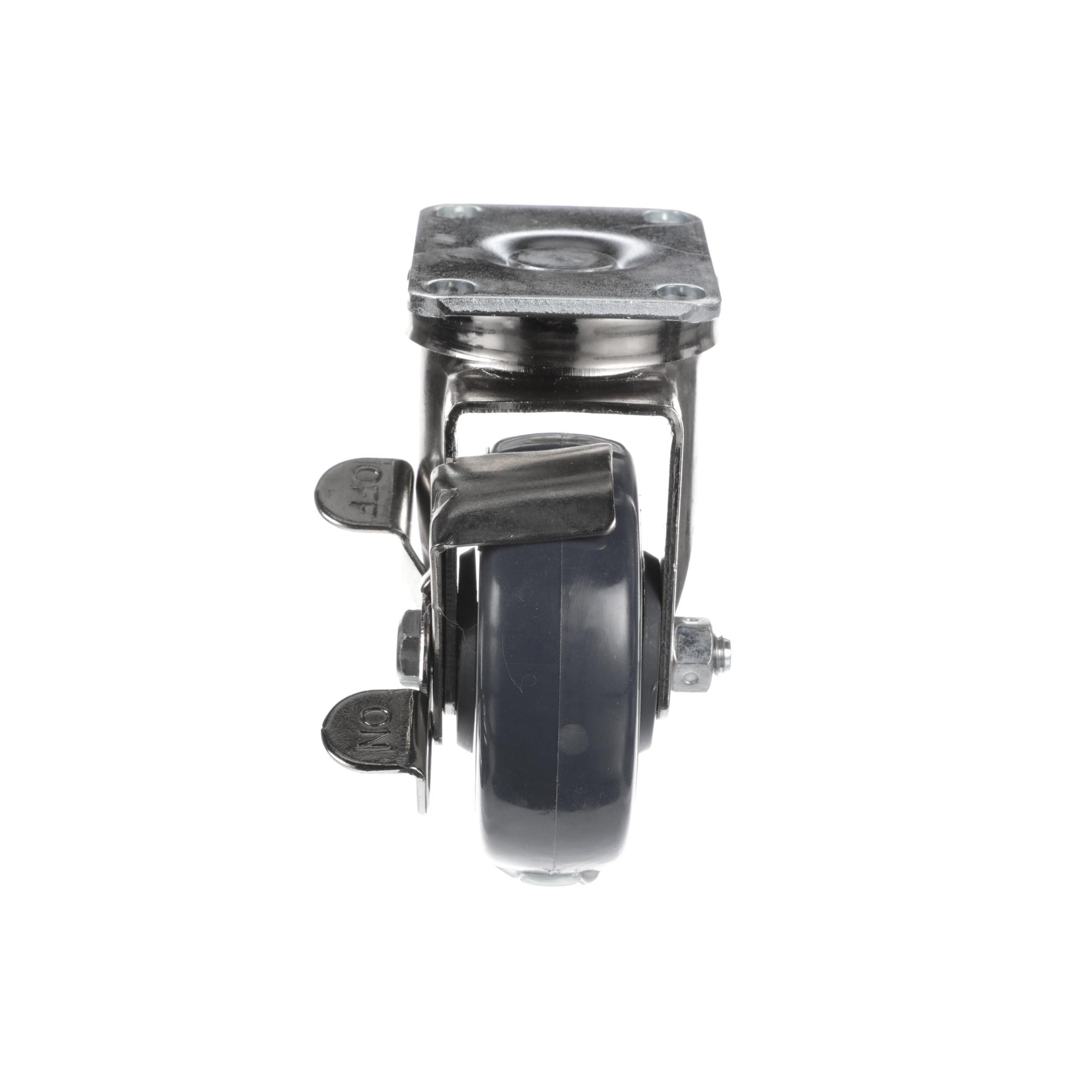

Furnished With Side Brake
Load capacity 250 lbs. (100kg) per wheel
4-1/2" (115mm) load height
3-5/16" (85mm) swivel radiu

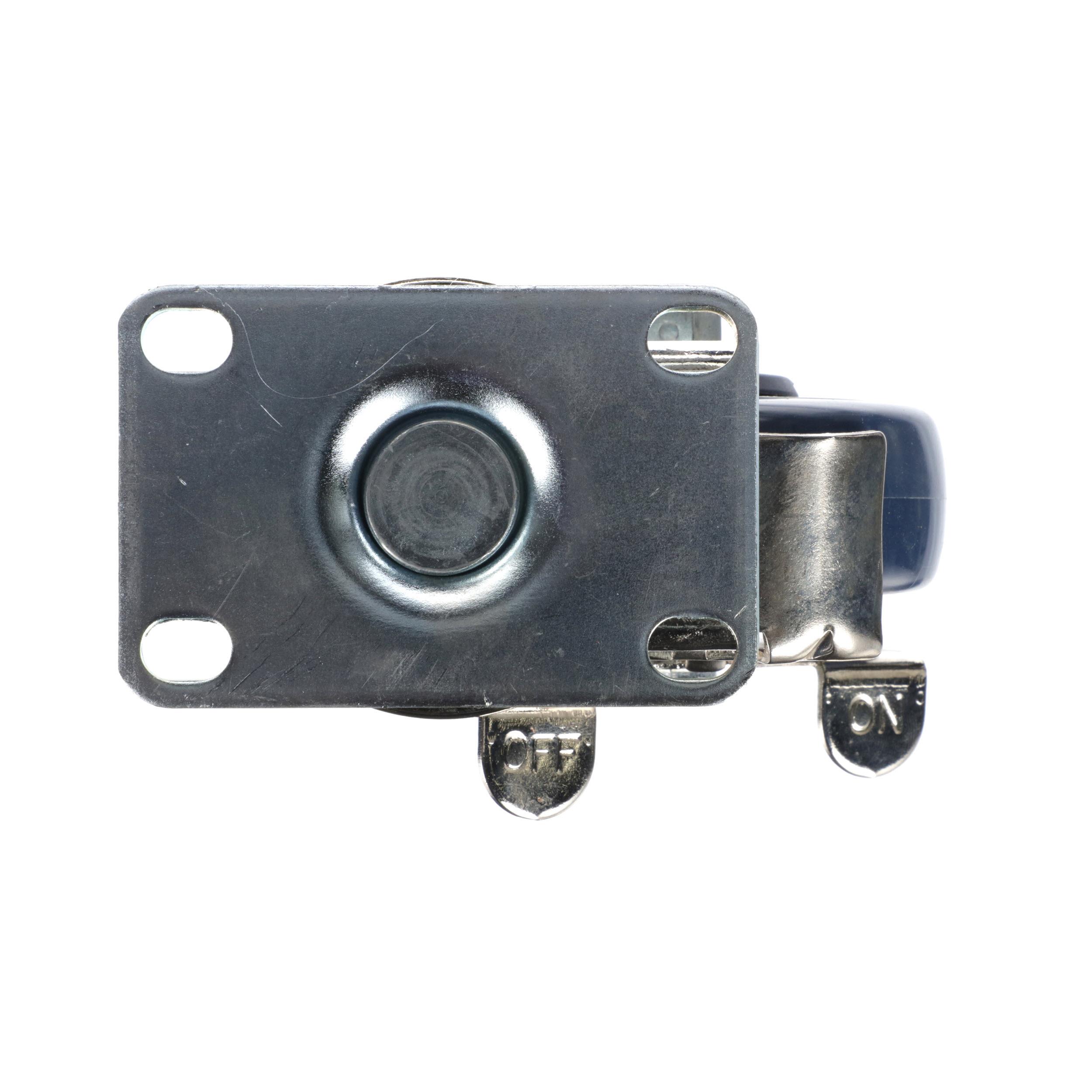

2-3/8" x 3-5/8" (60mm x 90mm) mounting plate with mounting holes spaced on 1-3/4" x 3" (45mm x 75mm) centers
Mounting holes accept 1/4" or 5/16" diameter bolts/screws

Model No: C21-3036

Item No.: 1002371

Related Resources

$53.93

Qty:

i h

Products specifications
