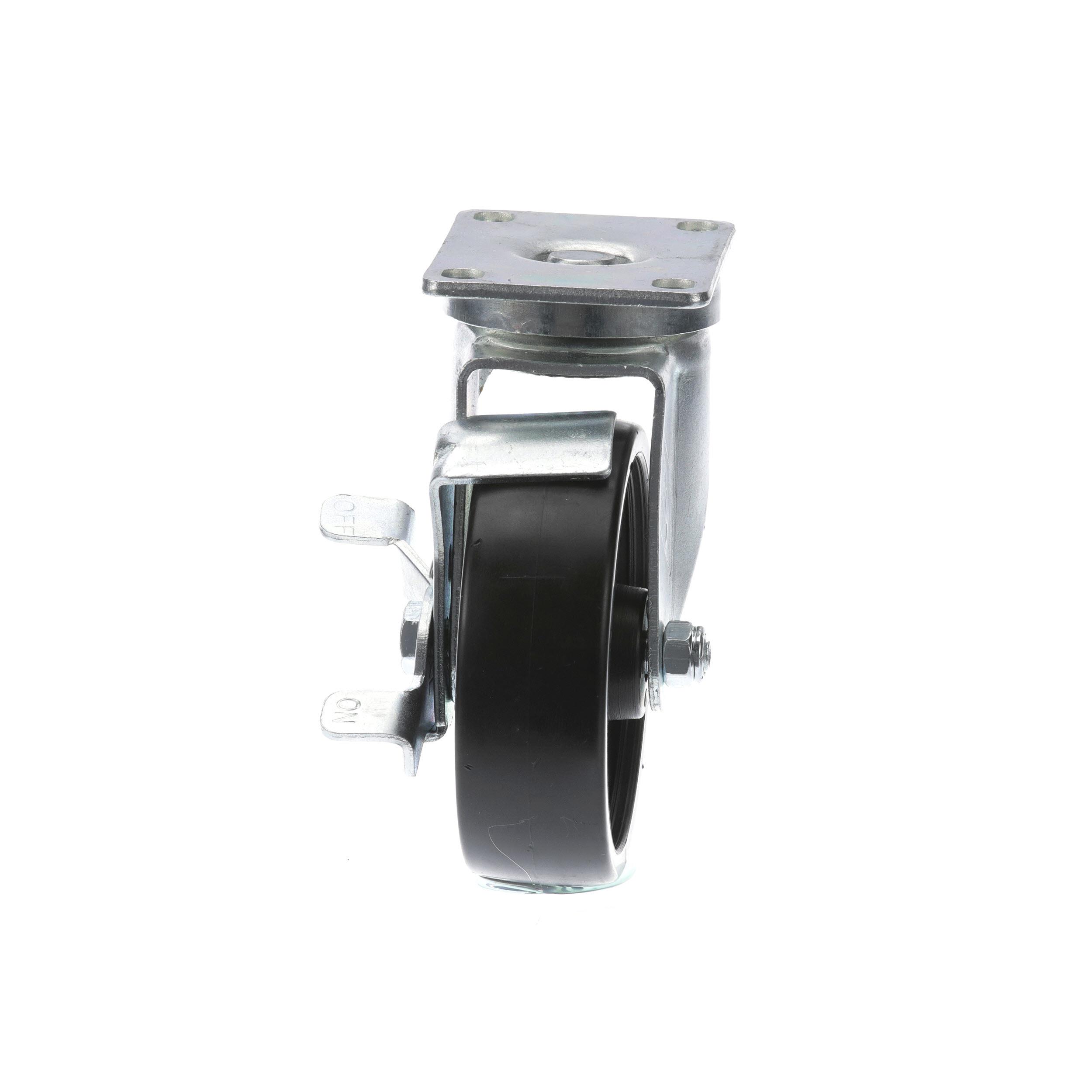

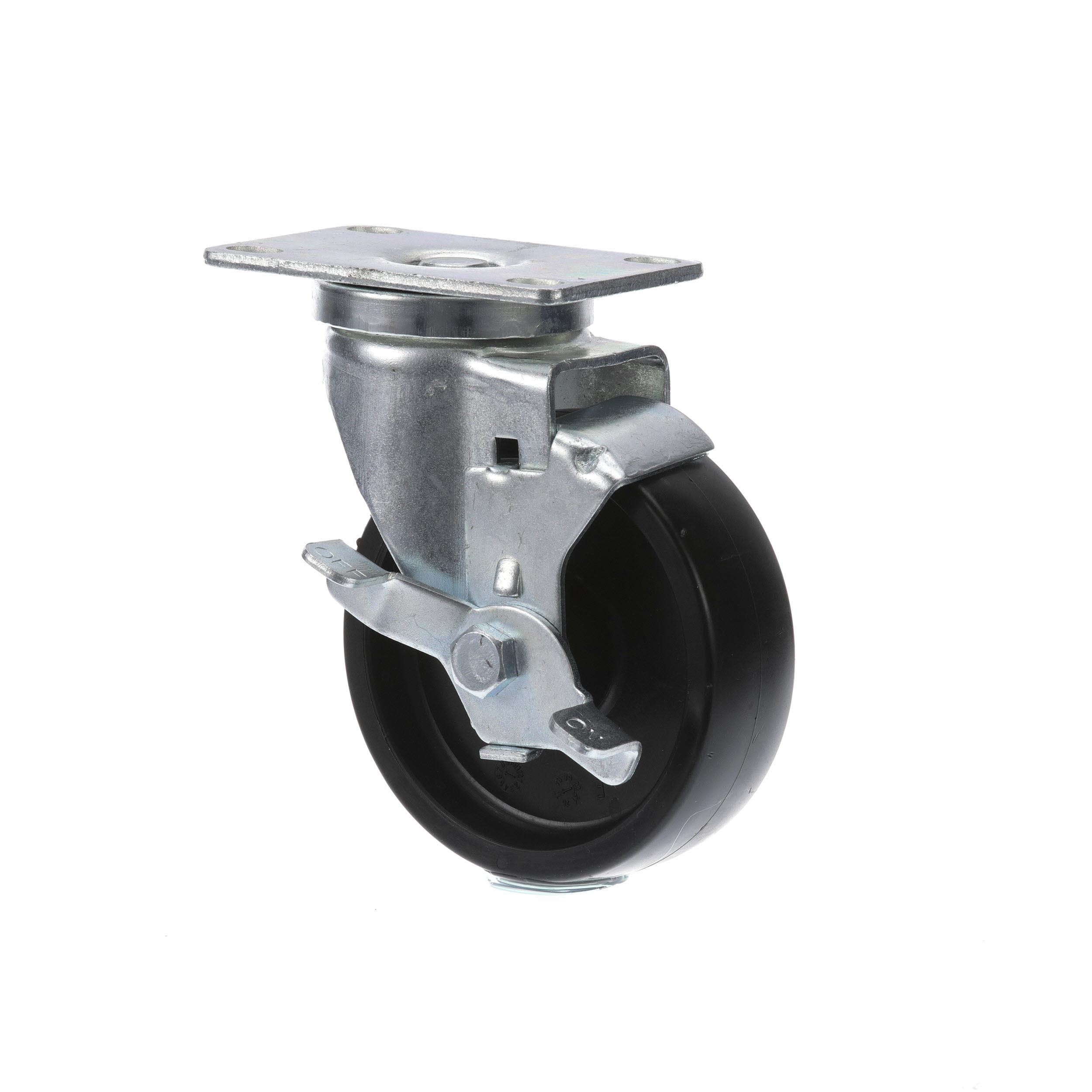

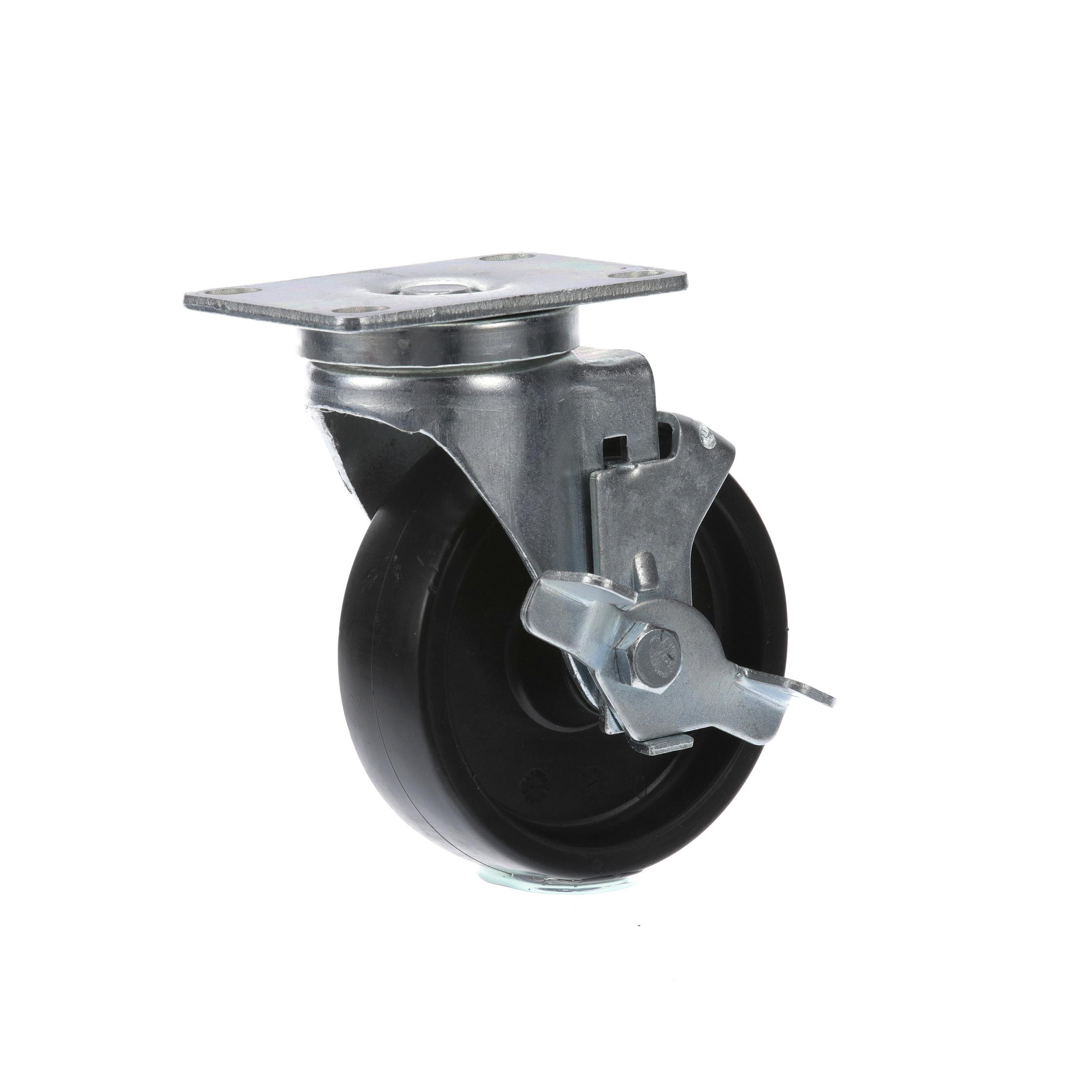

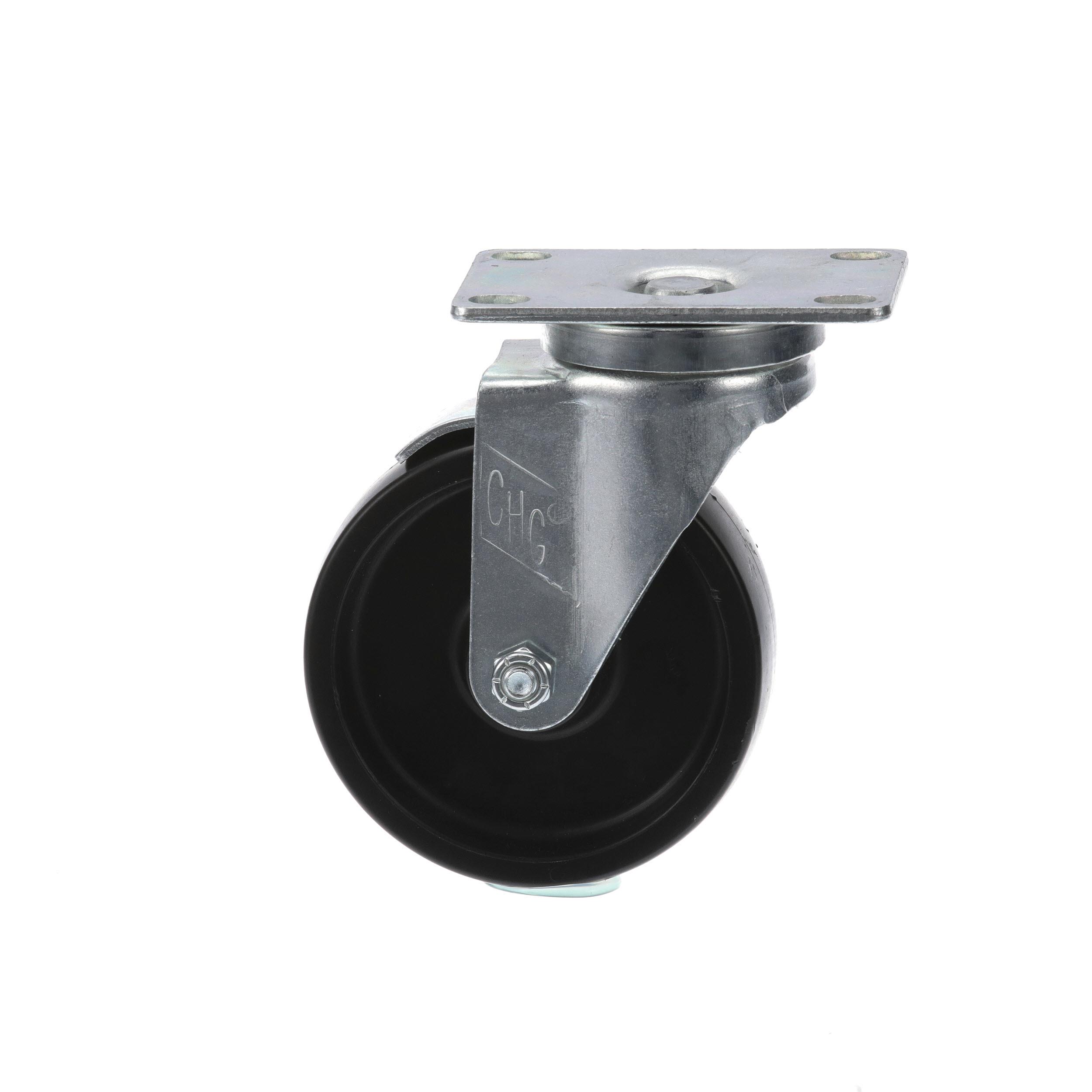

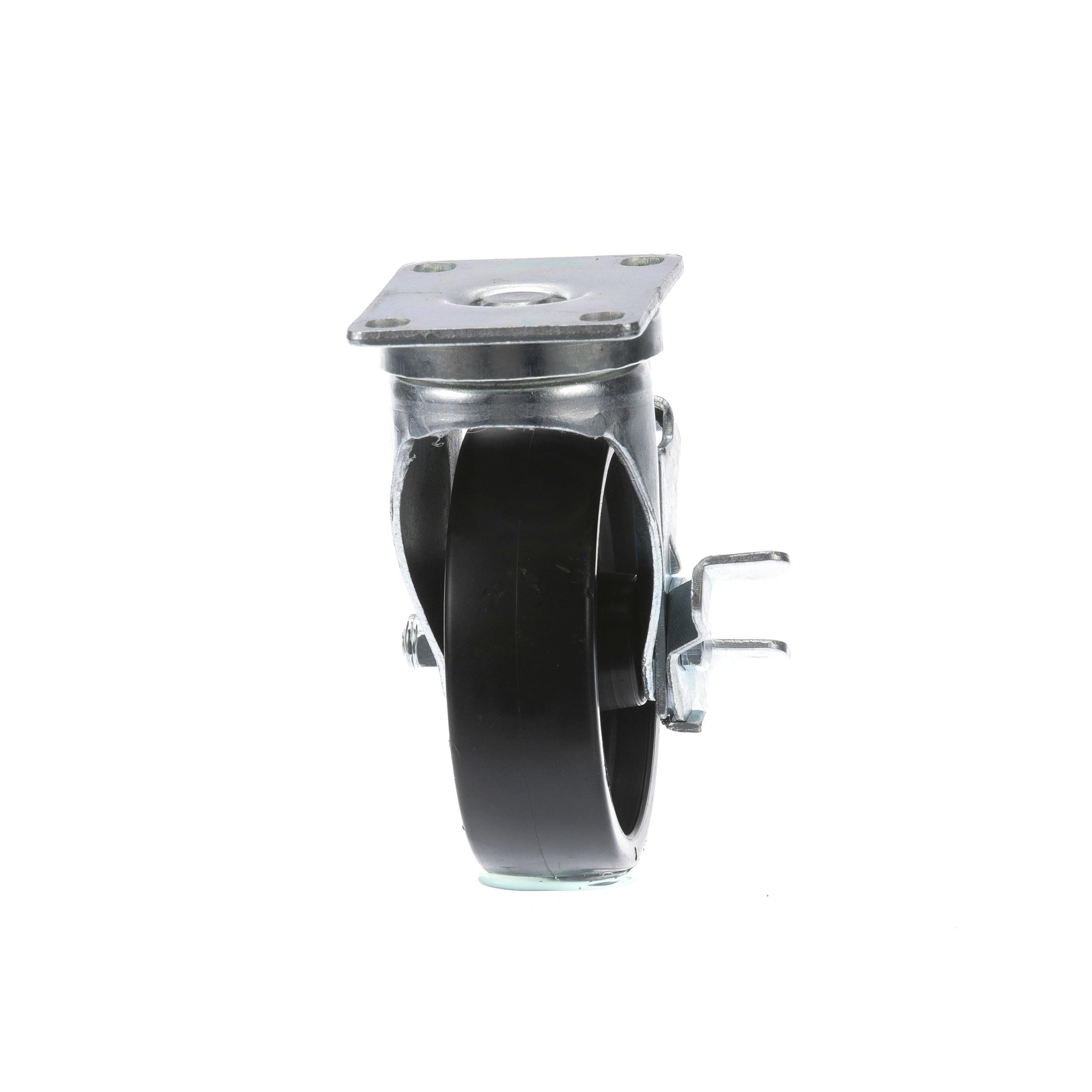

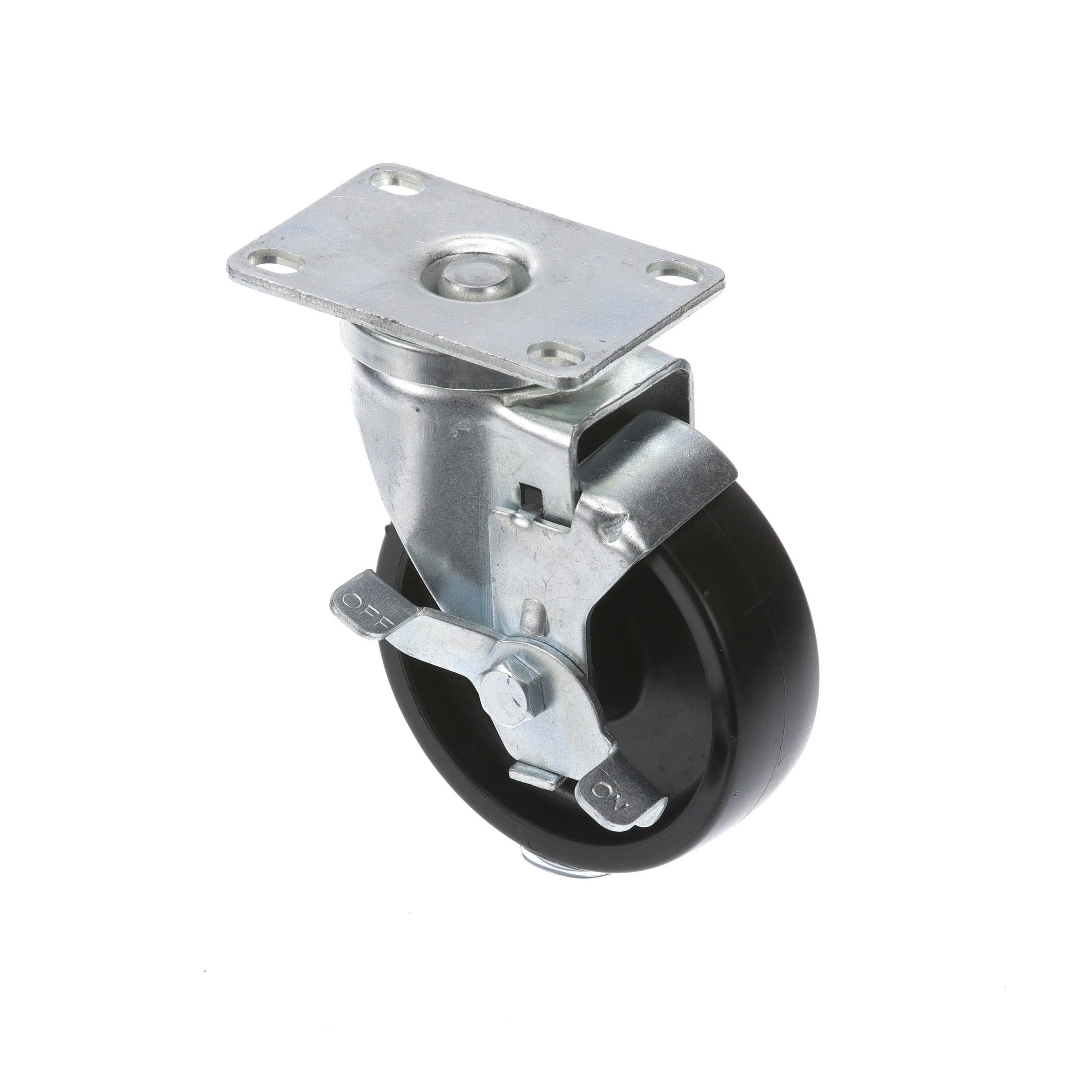

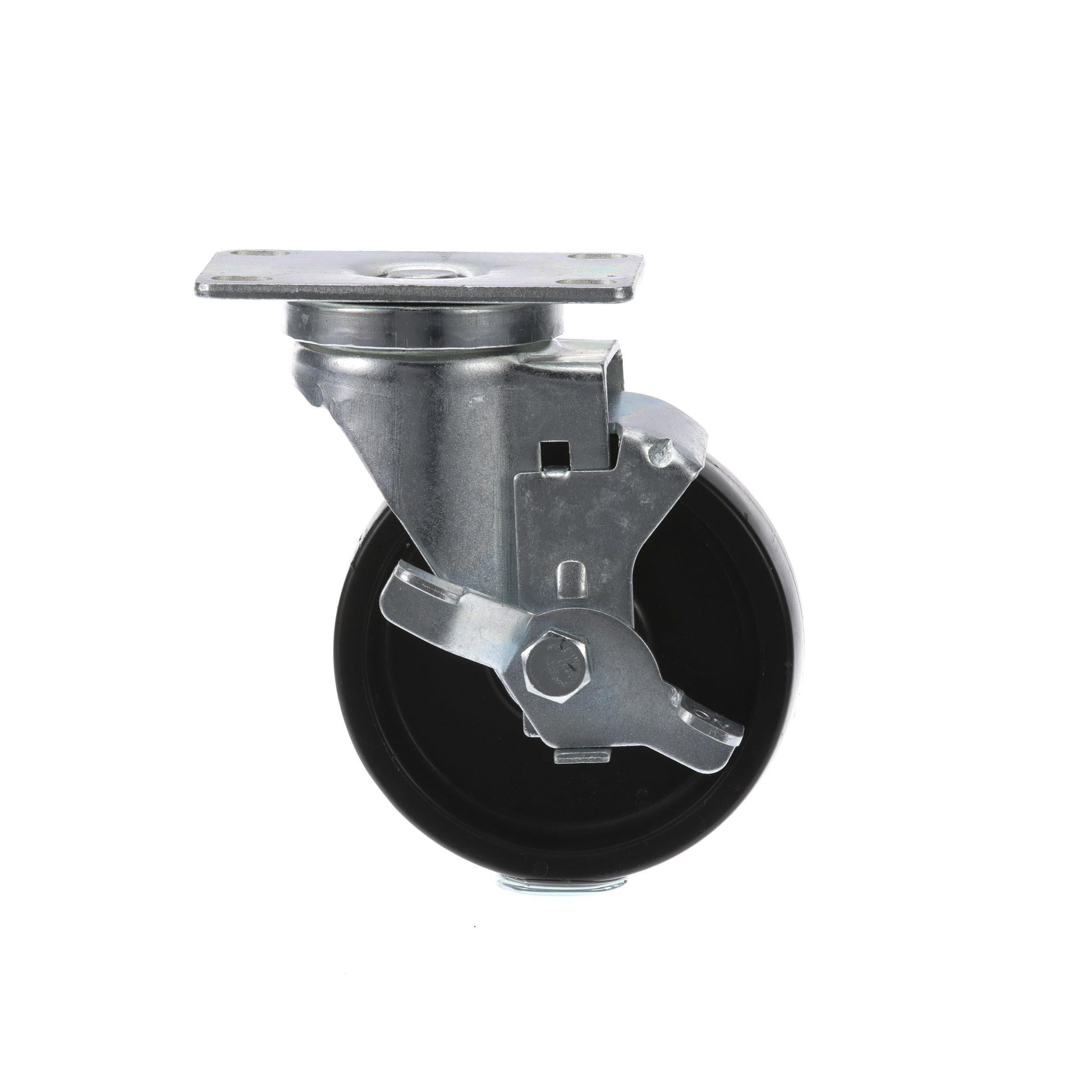

    Medium Duty 2-3/8" x 3-5/8" Plate Caster With 3" Black Polyolefin Wheel With Brake

    • Medium Duty 2-3/8" x 3-5/8" Plate Caster With 3" Black Polyolefin Wheel With Brake
    • Zinc plated steel yoke construction
    • 1-1/4" (32mm) tread width
    • 3" (76mm) OD black polyolefin wheel
    • Furnished with Side Brake
    • Load capacity 250 lbs. (110kg) per wheel
    • 4" (102mm) load height
    • 2-7/8" (73mm) swivel radius

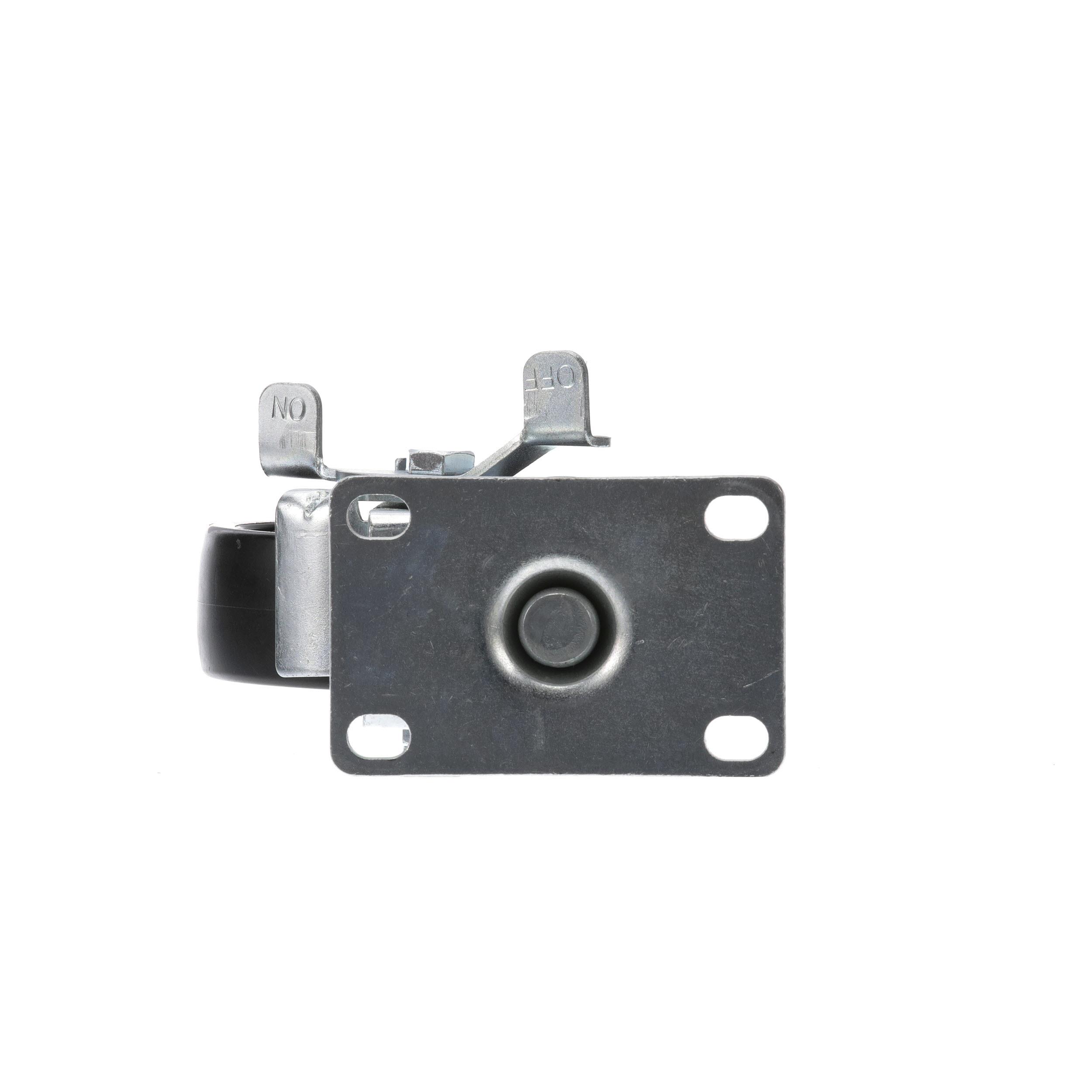

    • 2-3/8" x 3-5/8" (60mm x 90mm) swivel plate with slotted mounting holes spaced on 1-3/4" x 2-7/8" (45mm x 73mm) centers
    • Mounting holes accept 1/4" diameter bolts/screws
    Model No: CMP1-3BBN
    Item No.: 1002820

    Availability: In stock
    $13.55
    i h
    Products specifications
    LOAD RATING 250 LBS
    CASTER DUTY MEDIUM
    FINISH / COLOR ZINC PLATED
    MOUNTING TYPE PLATE
    THREAD / PLATE / STEM SIZE 002.375 X 003.625
    WHEEL DIAMETER 3 INCHES
    WHEEL MATERIAL BLACK POLYOLEFIN
    BRAKE TYPE SIDE
    BEARING TYPE NONE
    DIAMETER 3 INCHES
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    SECONDARY MATERIAL POLYOLEFIN
    ATTRIBUTES COMPLETE YES
